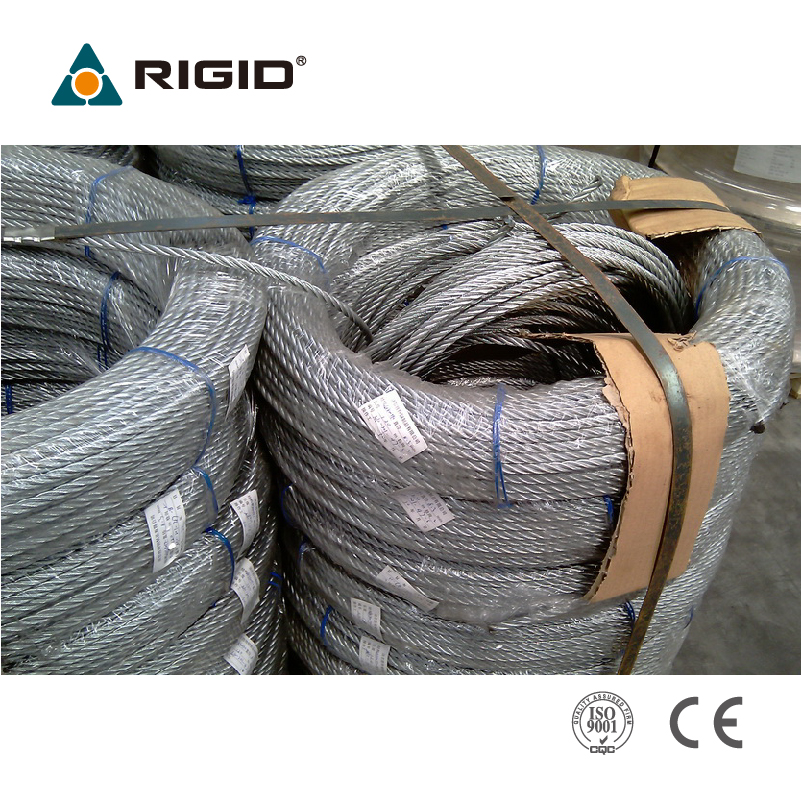

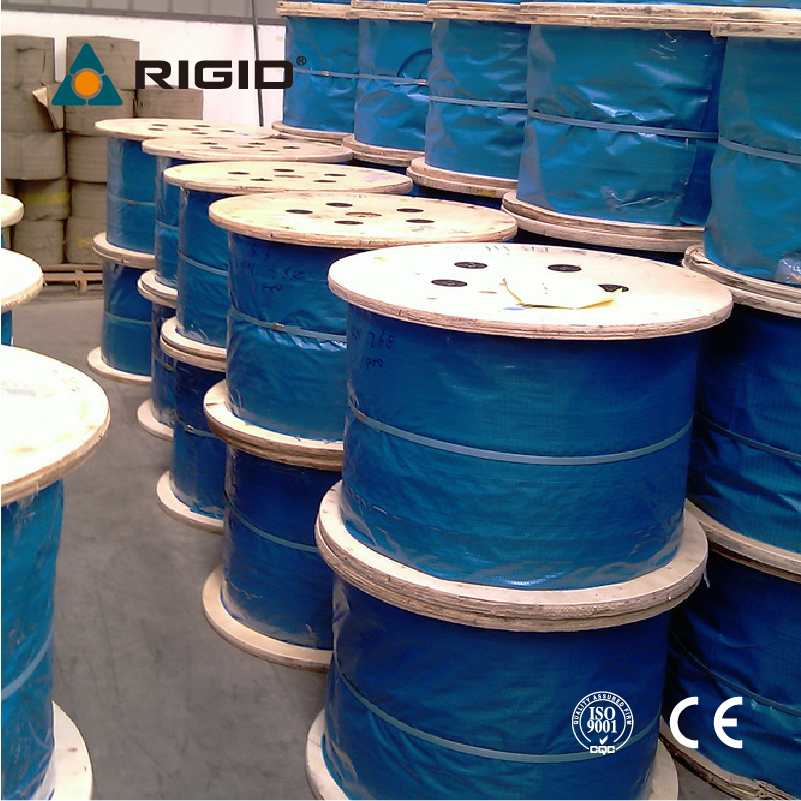

RIGID Steel Wire Rope for Suspended Access

The steel wire rope is the critical lifeline of any suspended access system. RIGID offers a comprehensive range of high-performance steel wire ropes specifically engineered and certified for use with our LTD-P Series traction hoists (500kg to 2000kg capacities). Manufactured to the highest international standards (EN 1808:2015 and GB/T 19155-2017), our wire ropes deliver exceptional breaking strength, superior fatigue resistance, and reliable performance in demanding working-at-height applications, including suspended platforms, elevator installation, wind turbine service, and industrial maintenance.

Key Features & Advantages

• Optimized for Traction Hoists: Unlike standard commercial wire ropes, RIGID wire ropes are specifically constructed (e.g., 4×31SW+FC, 5×K19S+SFC 、5×26WS+FC) to match the precise gripping requirements of the α-type reeving system in our LTD-P hoists. This ensures smooth traction, minimizes slippage, and significantly extends the lifespan of both the rope and the hoist's internal driving components.

• High Breaking Strength: Featuring a high tensile strength of 1960 MPa to 2160 MPa, our wire ropes provide a robust safety margin. For instance, the 14mm rope used with the LTD200-P hoist boasts a minimum breaking force of 156.8 kN, easily handling heavy-duty 2000kg loads.

• Superior Corrosion Resistance: All RIGID wire ropes are heavily galvanized to withstand harsh outdoor environments, extreme weather conditions, and corrosive industrial atmospheres, ensuring long-lasting reliability.

• Preformed and Compacted Structure: The preformed construction prevents the rope from unraveling when cut, while the compacted design (available on select models) offers a smoother surface, reducing wear on the hoist's sheaves and guide rollers.
