LTD-P 2000kg
Rigid
| Quantity: | |
|---|---|

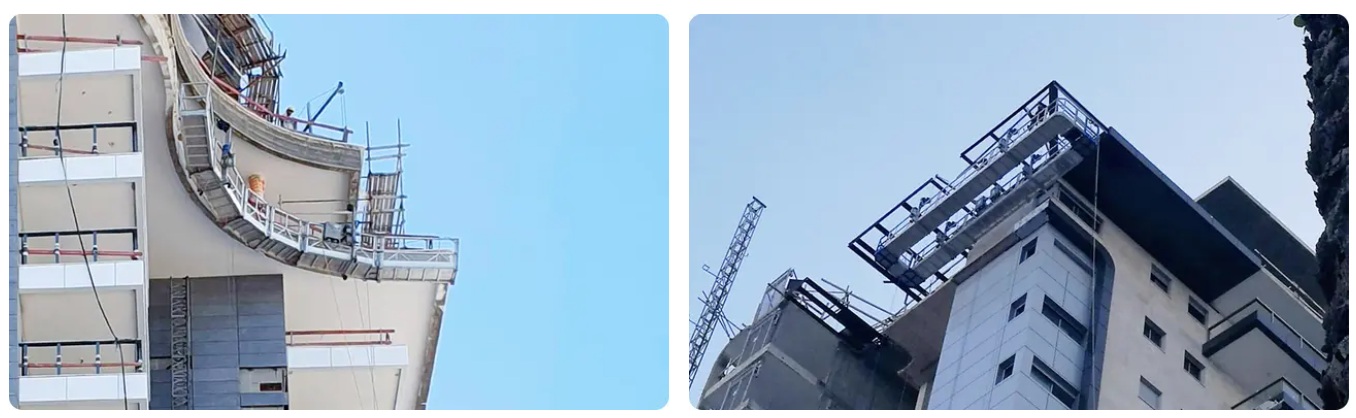

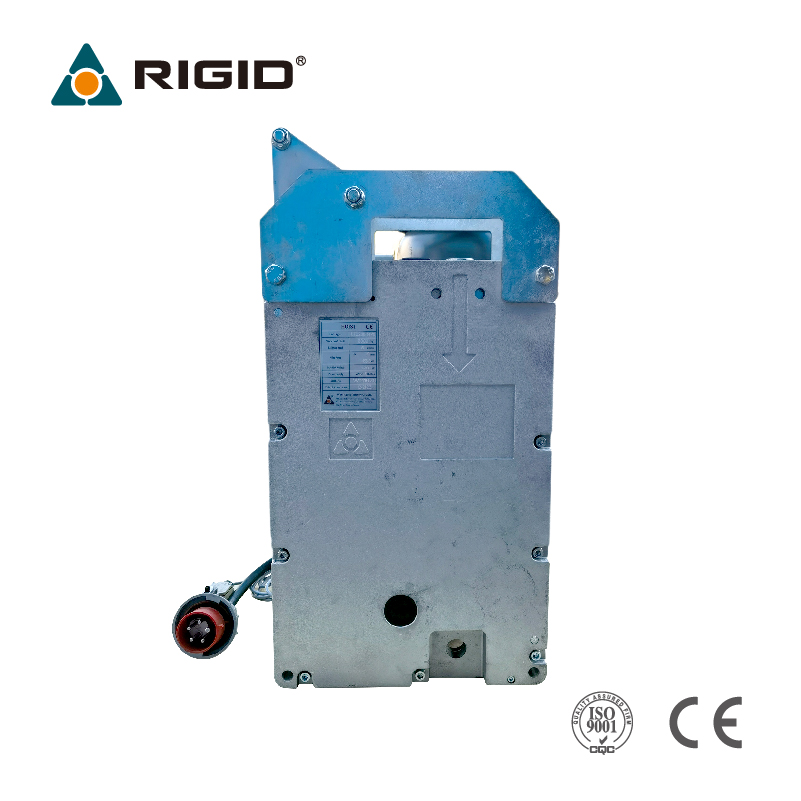

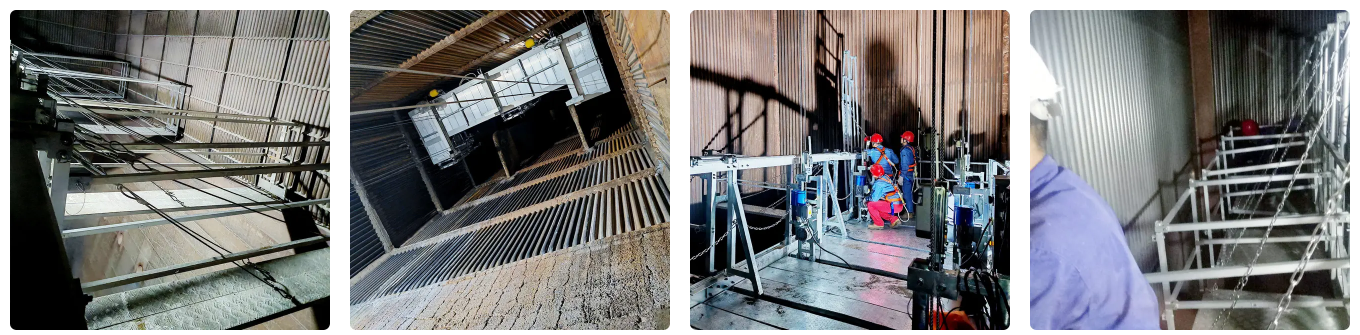

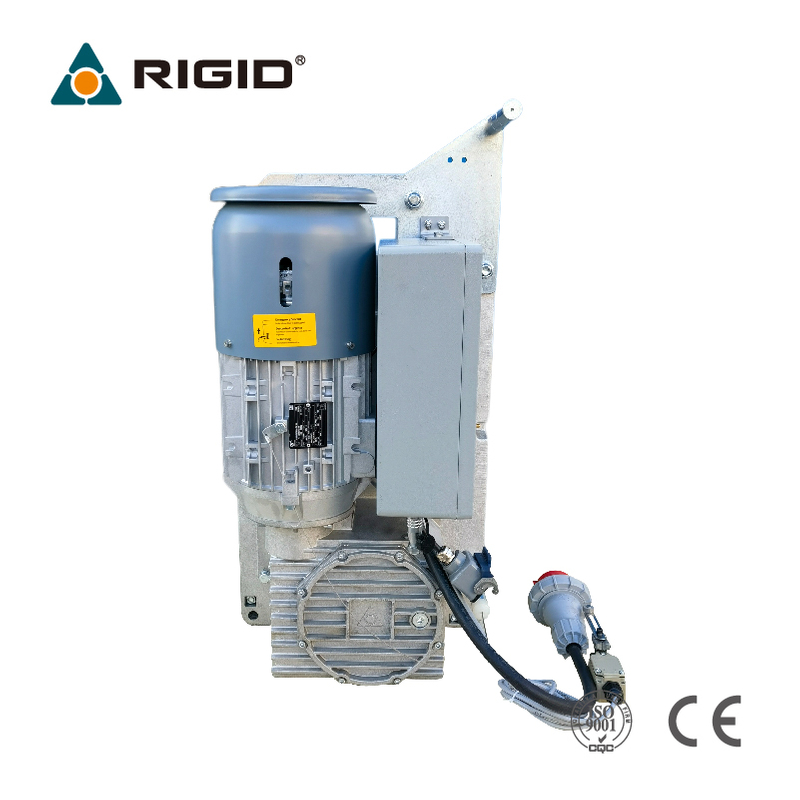

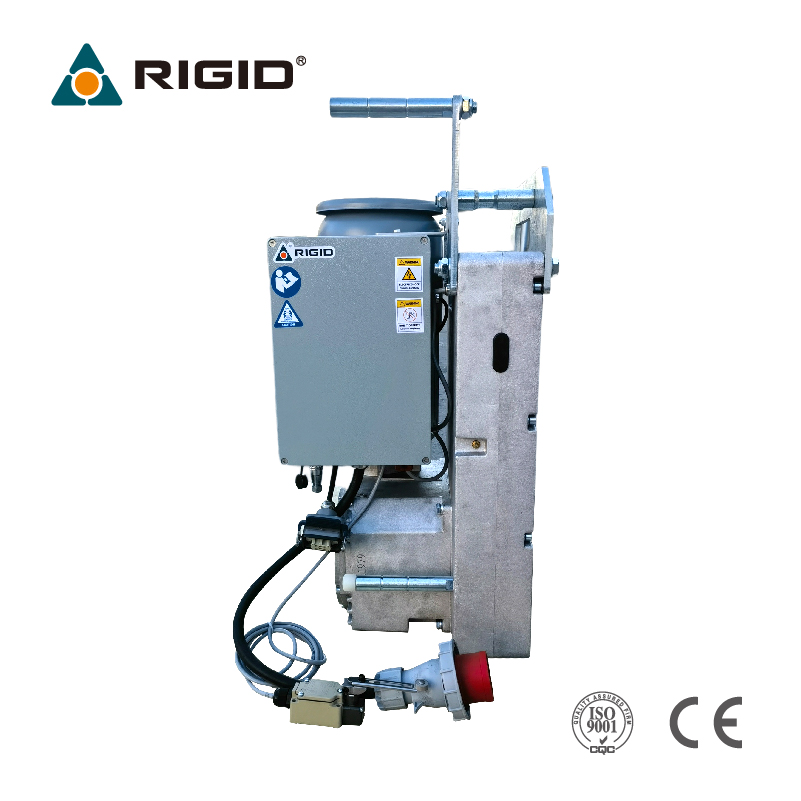

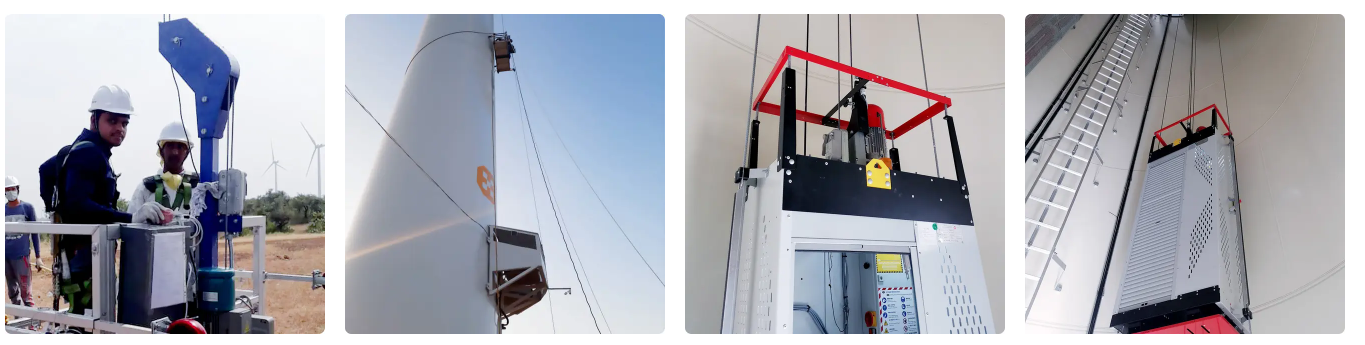

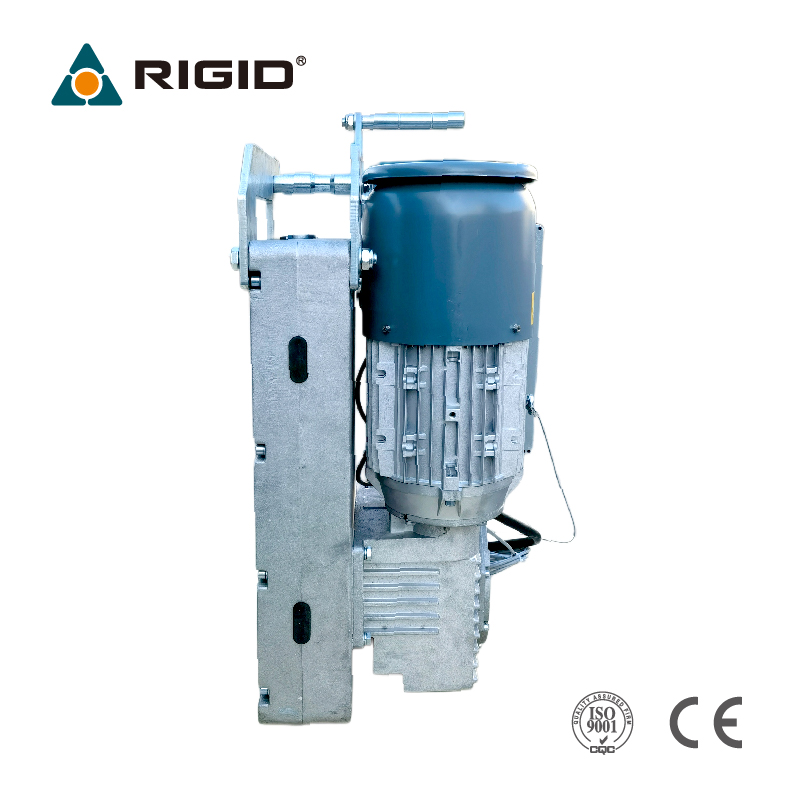

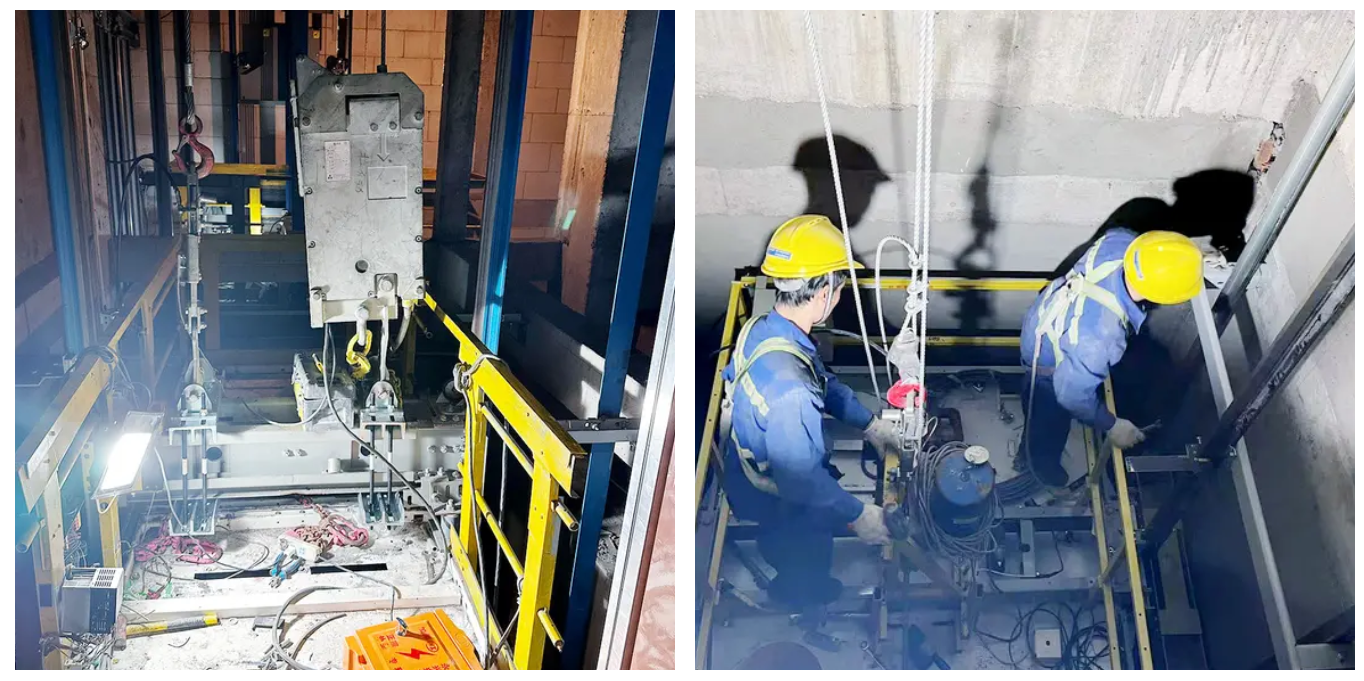

The RIGID LTD200-P hoist is a heavy-duty wire rope pass-through traction hoist specifically engineered for high-capacity working-at-height systems, delivering an impressive 2000kg working load limit. Utilizing a robust α-type reeving system, the equipment achieves stable climbing and descending through a 14mm main wire rope that passes completely through the machine rather than being stored inside. This design allows for unlimited working heights and extended traction distances. Powered by a high-performance 6.2kW motor and featuring a durable worm gear reducer, the LTD200-P is widely used in heavy-duty suspended platforms, large-scale elevator installation platforms, bridge maintenance systems, and industrial lifting scenarios, providing a safer, more stable, and highly efficient vertical lifting guarantee for heavy loads.
Product Advantages
Heavy-Duty Capacity with Unlimited Height: Delivers a massive 2000kg lifting capacity while maintaining the benefits of a pass-through traction structure. The wire rope passes directly through the machine body, theoretically free from drum storage limitations, perfectly adapting to super high-rise buildings and deep shafts requiring heavy lifting.
Robust and Durable Construction: Features a heavy-duty casing, hardened steel driving disc, and a reliable worm gear reducer. Designed for a 250-hour overhaul cycle, it ensures long-term durability and stable performance even in the most demanding industrial environments.

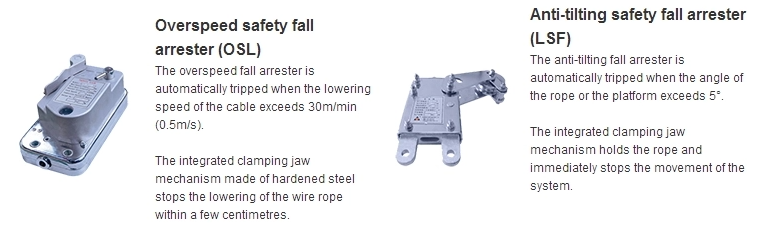

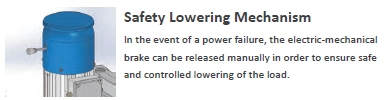

Comprehensive Safety System: Integrates a mechanical overload detection device (adjustable from 100% to 125% of rated load), motor thermal overload protection, and a manual emergency descent mechanism. It also features a centrifugal speed limiter to ensure safe lowering speeds.
Wide Environmental Adaptability: Operates reliably in a wide temperature range from -20°C to 55°C and achieves an IP55 protection class, easily coping with harsh outdoor construction and industrial maintenance conditions.
