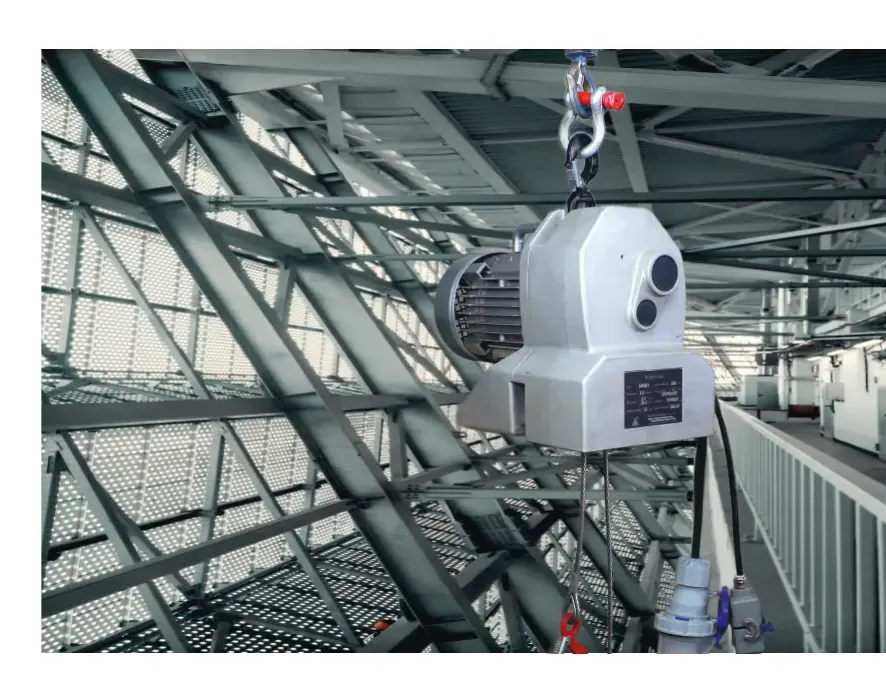

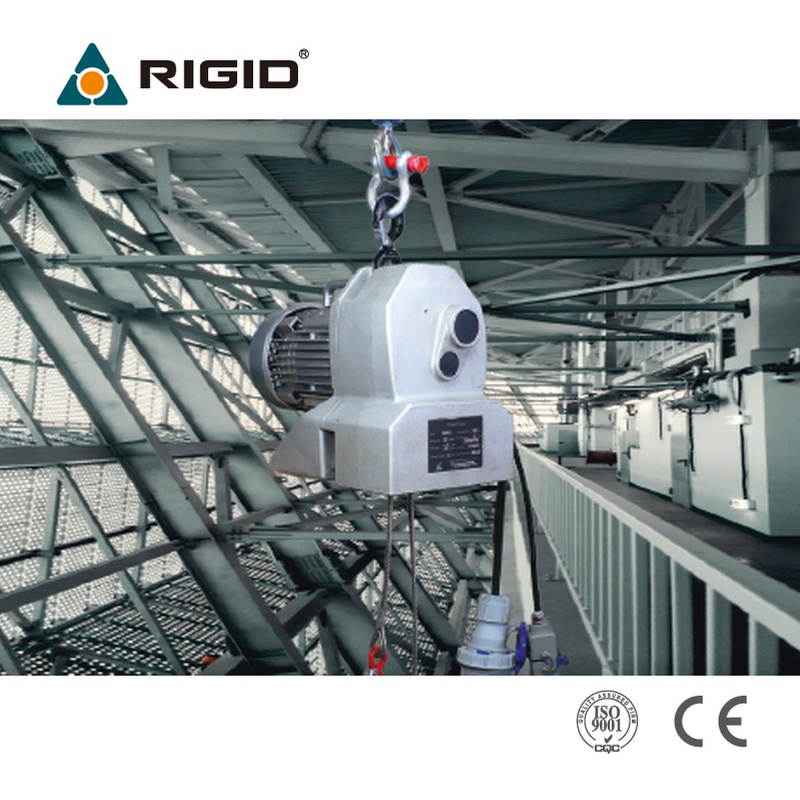

Portable Electric Wire Rope Hoist Compact wire rope hoist with unlimited lifting height for mobile applications
The RIGID MiniHoist MH series delivers high-performance lifting in a compact, lightweight form — ideal for confined spaces and long vertical travel. The pass-through wire rope design enables unlimited lifting height, making it the preferred choice for wind power, construction, elevator installation, and industrial maintenance.
The RIGID MiniHoist MH series is a portable electric wire rope hoist driven by friction between the steel wire rope and the drive wheel. The wire rope passes completely through the hoist rather than being stored inside, enabling unlimited lifting height and pulling length — a key advantage over conventional drum-type hoists.
The drive system consists of a traction sheave and precision pressure rollers. These rollers clamp the rope securely onto the sheave, with clamping force proportional to the applied load. A pre-tensioned spring maintains rope grip even under no-load conditions, ensuring safe and reliable operation at all times.
Conforming to standards EN 14492-1 and EN 14492-2, the MH series is factory-tested at 110% of maximum rated load before delivery, guaranteeing performance and safety from the first use.
Product Advantages
Unlimited Lifting Height — Pass-through wire rope design with no restriction on rope length or travel distance
Compact & Portable — Lightweight aluminium housing enables fast setup in confined spaces
High Power-to-Weight Ratio — 1.1 kW motor in a 33–35 kg package delivers 500 kg capacity
Flexible Power Supply — Available in single-phase (110V / 230V) and three-phase (230V / 400V) configurations
Dual Control Options — Plug-in pendant control or radio remote control (up to 70 m range, extendable to 150 m)
Doubled Capacity Option — Optional reeving kit (2:1 sheave) increases WLL to 950 kg at half speed
Factory Tested — Every unit tested at 110% rated load prior to shipment
Compliant with International Standards — CE, ISO 9001, EAC (PG) certified; EN 14492-1/-2 compliant
Model Comparison
Select the right MiniHoist model for your application based on required capacity and speed.
Parameter
MH501 (1~)
MH501 (3~)
MH302
Working Load Limit (Direct)
500 kg
500 kg
300 kg
Working Load Limit (2:1 Reeved)
950 kg
950 kg
600 kg
Lifting Speed (Direct)
8 m/min
8 m/min
13 m/min
Lifting Speed (2:1 Reeved)
4 m/min
4 m/min
6.5 m/min
Motor Power
1.1 kW
1.1 kW
—
Power Supply
230 V / 50 Hz / 1~
400 V / 50 Hz / 3~
110 / 230 / 400 V
Wire Rope Diameter
Ø 6.5 mm
Ø 6.5 mm
Ø 6.5 mm
Unit Weight
33 kg
35 kg
34 kg
Protection Class
IP55
IP55
IP55
Lifting Height
Unlimited
Unlimited
Unlimited
Technical Parameter Table
Model
Working Load Limit
Lifting Speed
Wire Rope Diameter
Power Supply
Motor Power
Rated Current
Unit Weight
MH501
500 kg
8 m/min
Ø 6.5 mm
230 V / 50 Hz / 1~
1.1 kW
8.0 A
33 kg
MH501
500 kg
8 m/min
Ø 6.5 mm
400 V / 50 Hz / 3~
1.1 kW
3.4 A
35 kg
MH501
500 kg
8 m/min
Ø 6.5 mm
230 V / 50 Hz / 3~
1.1 kW
5.9 A
35 kg
MH302
300 kg
13 m/min
Ø 6.5 mm
110 V / 230 V / 400 V
—
—
34
Note: A reeving kit (2:1 sheave pulley) may be used to double the working load. At 2:1 reeving, the maximum load is 950 kg and lifting speed is reduced to half. For other models or special voltages, please contact RIGID Machinery.
Wire Rope Specification
Construction
Diameter
Tensile Strength
Minimum Breaking Force
5×K19S-SFC
6.5 mm
2,160 MPa
28.4 kN
Working Environment Requirements
Altitude
≤ 1,000 m above sea level
Ambient Temperature
−20 °C to +55 °C
Relative Humidity
≤ 90% (at 25 °C)
Voltage Tolerance
±5% rated voltage; ±2% rated frequency
Wind Speed
≤ 8.3 m/s (Beaufort Scale 5)
Protection Class
IP55 (IP65 available on request)
Noise Level
The noise level of the MiniHoist MH series does not exceed 85 dB(A), measured at 1 m from the unit under rated load conditions.
Model Comparison
Select the right MiniHoist model for your application based on required capacity and speed.
Parameter
MH501 (1~)
MH501 (3~)
MH302
Working Load Limit (Direct)
500 kg
500 kg
300 kg
Working Load Limit (2:1 Reeved)
950 kg
950 kg
600 kg
Lifting Speed (Direct)
8 m/min
8 m/min
13 m/min
Lifting Speed (2:1 Reeved)
4 m/min
4 m/min
6.5 m/min
Motor Power
1.1 kW
1.1 kW
—
Power Supply
230 V / 50 Hz / 1~
400 V / 50 Hz / 3~
110 / 230 / 400 V
Wire Rope Diameter
Ø 6.5 mm
Ø 6.5 mm
Ø 6.5 mm
Unit Weight
33 kg
35 kg
34 kg
Protection Class
IP55
IP55
IP55
Lifting Height
Unlimited
Unlimited
Unlimited
The MiniHoist MH series incorporates multiple independent safety mechanisms designed to protect operators and equipment under all operating conditions.
Self-Braking Motor
The unique self-braking motor holds the load securely in position whenever power is removed or interrupted, preventing uncontrolled descent.
Thermal Overload Protection
A built-in bimetallic thermal switch monitors motor temperature and automatically cuts power if overheating is detected, protecting against overload damage.
Upper & Lower Limit Switches
Integrated adjustable limit switches automatically stop travel at both upper and lower limits, preventing over-travel and securing the rope exit point.
24 V Low-Voltage Control
All operator control circuits operate at safe 24 V low voltage, significantly reducing the risk of electric shock during normal operation.
IP55 / IP65 Protection
Standard IP55 enclosure rating (IP65 available on request) ensures reliable performance in dusty, wet, and outdoor environments.
110% Factory Load Test
Every MiniHoist unit is tested at 110% of its maximum rated working load before leaving the factory, verifying structural integrity and brake performance.
Certifications & Standards Compliance
CE
EU Machinery Directive 2006/42/CE
ISO 9001
Quality Management
System
EAC
Eurasian Conformity (PG Mark)
EN 14492
Part 1 & Part 2 Power Driven Winches & Hoists
Model Comparison
Select the right MiniHoist model for your application based on required capacity and speed.
Parameter
MH501 (1~)
MH501 (3~)
MH302
Working Load Limit (Direct)
500 kg
500 kg
300 kg
Working Load Limit (2:1 Reeved)
950 kg
950 kg
600 kg
Lifting Speed (Direct)
8 m/min
8 m/min
13 m/min
Lifting Speed (2:1 Reeved)
4 m/min
4 m/min
6.5 m/min
Motor Power
1.1 kW
1.1 kW
—
Power Supply
230 V / 50 Hz / 1~
400 V / 50 Hz / 3~
110 / 230 / 400 V
Wire Rope Diameter
Ø 6.5 mm
Ø 6.5 mm
Ø 6.5 mm
Unit Weight
33 kg
35 kg
34 kg
Protection Class
IP55
IP55
IP55
Lifting Height
Unlimited
Unlimited
Unlimited
The MiniHoist MH series is supported by a comprehensive range of optional accessories to extend functionality and adapt to specific application requirements.

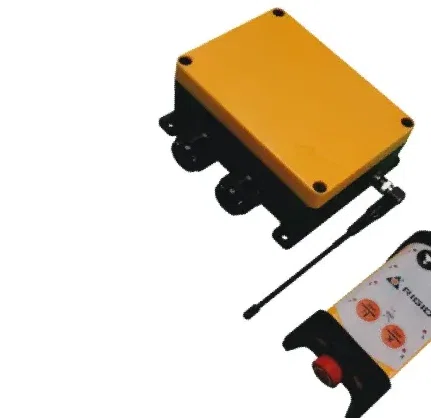

Radio Remote Control
Wireless operation with standard range up to 70 m (extendable to 150 m). Includes transmitter and receiver unit. Frequency: 433 MHz.

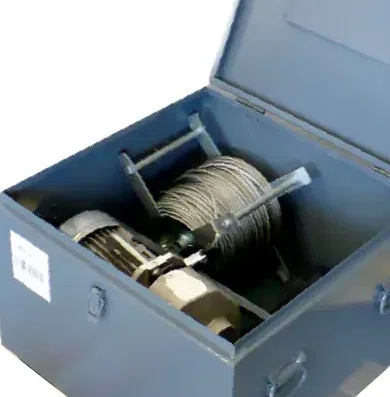

Steel Transport & Storage Box
Robust steel box for safe transport and storage of the MiniHoist unit together with wire rope and accessories.

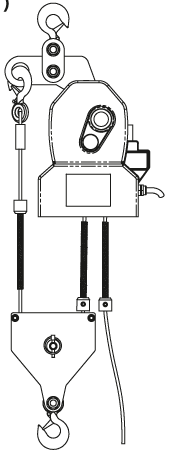

Reeving Kit (2:1 Sheave)
Doubles the working load capacity to a maximum of 950 kg. Lifting speed is reduced to half. Ideal for heavy material lifting tasks.

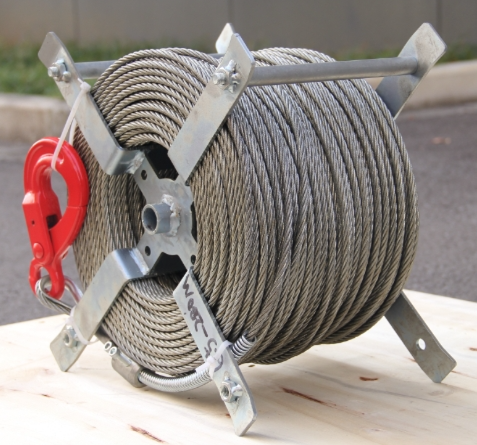

Wire Rope Assemblies
Galvanised wire rope Ø 6.5 mm (5×K19S-SFC, 2,160 MPa), available in various lengths. Rope ends factory-processed for safe installation.
Complete Options List
Option
Description
Single-phase supply
110 V or 230 V single-phase motor configuration
Three-phase supply
230 V or 400 V three-phase motor configuration
Special voltages
Non-standard voltages available upon request
Radio remote control
433 MHz wireless control, standard range 70 m, extendable to 150 m
Plug-in pendant control
Standard wired pendant with up/down and emergency stop buttons
Reeving kit (2:1)
Sheave pulley set to double WLL; max load 950 kg at half speed
Steel transport box
Lockable steel box for hoist, rope, and accessories
Wire rope (various lengths)
Factory-terminated galvanised wire rope in custom lengths
Self-locking hook
Safety swivel hook with automatic locking latch
Extended power/control cables
Various cable lengths for extended reach installations
Model Comparison
Select the right MiniHoist model for your application based on required capacity and speed.
Parameter
MH501 (1~)
MH501 (3~)
MH302
Working Load Limit (Direct)
500 kg
500 kg
300 kg
Working Load Limit (2:1 Reeved)
950 kg
950 kg
600 kg
Lifting Speed (Direct)
8 m/min
8 m/min
13 m/min
Lifting Speed (2:1 Reeved)
4 m/min
4 m/min
6.5 m/min
Motor Power
1.1 kW
1.1 kW
—
Power Supply
230 V / 50 Hz / 1~
400 V / 50 Hz / 3~
110 / 230 / 400 V
Wire Rope Diameter
Ø 6.5 mm
Ø 6.5 mm
Ø 6.5 mm
Unit Weight
33 kg
35 kg
34 kg
Protection Class
IP55
IP55
IP55
Lifting Height
Unlimited
Unlimited
Unlimited
The MiniHoist MH series is engineered for versatility across a wide range of industries and working environments where compact, reliable, and high-performance lifting is required.
Elevator Installation & Modernisation
Ideal for lifting components, counterweights, and materials within elevator shafts during new installation or modernisation projects.
Wind Power Maintenance
Used for service lifts and component handling inside wind turbine towers, where compact size and unlimited lifting height are essential.
Construction & Scaffolding
Efficient material lifting on construction sites, scaffolding systems, and building facades — portable enough to move between floors.
Industrial Assembly & Maintenance
Suitable for assembly lines, machinery maintenance, and confined-space lifting tasks in factories and industrial plants.
Facade Engineering
Integrated into suspended platform systems and facade maintenance units for building exterior work at any height.
Infrastructure & Bridge Maintenance
Used for inspection and maintenance of bridges, towers, dams, and other infrastructure requiring vertical access at height.
