Description
The Rigid CP Series BMU Suspended Platforms are available in two configurations — single-point (ZLP250) and double-point (CP70) — designed for single-person lightweight operations in confined spaces and heavy-duty multi-person work on wide facades respectively, with rated load capacities ranging from 250 kg to 630 kg to meet the aerial maintenance demands of virtually any building facade. Each platform is equipped with either a centrifugal overspeed safety lock (OSL308) or an anti-tilt safety lock (LSF308), integrated with a three-phase intelligent control system and a manual descent function in the event of power failure, delivering a multi-layered active safety protection system. As the only manufacturer in China whose full product range has obtained TUV Rheinland CE certification, Rigid Machinery provides trusted permanent suspended access solutions to landmark buildings worldwide, backed by world-class quality

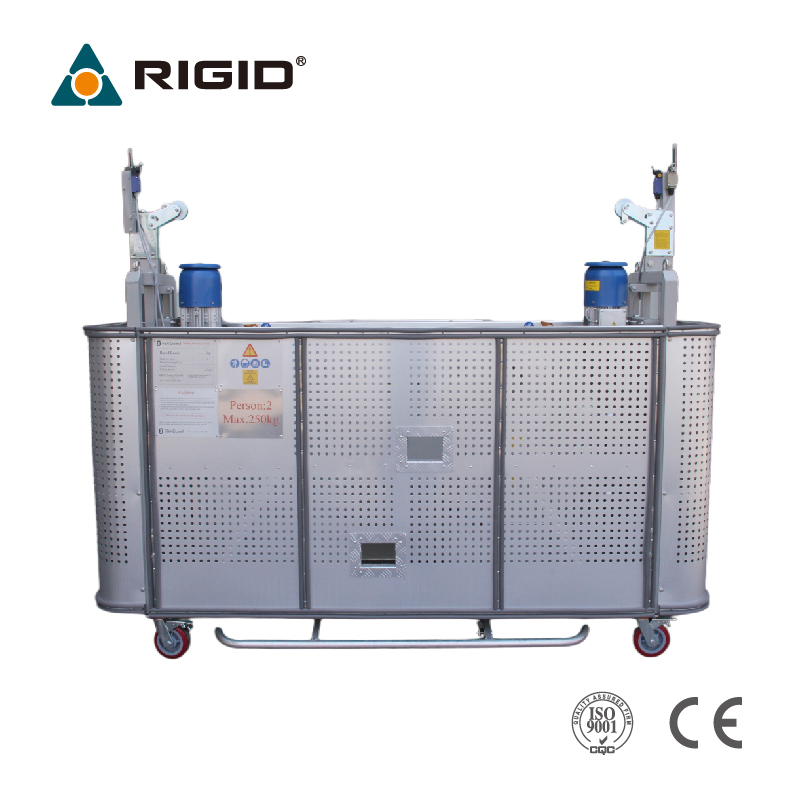

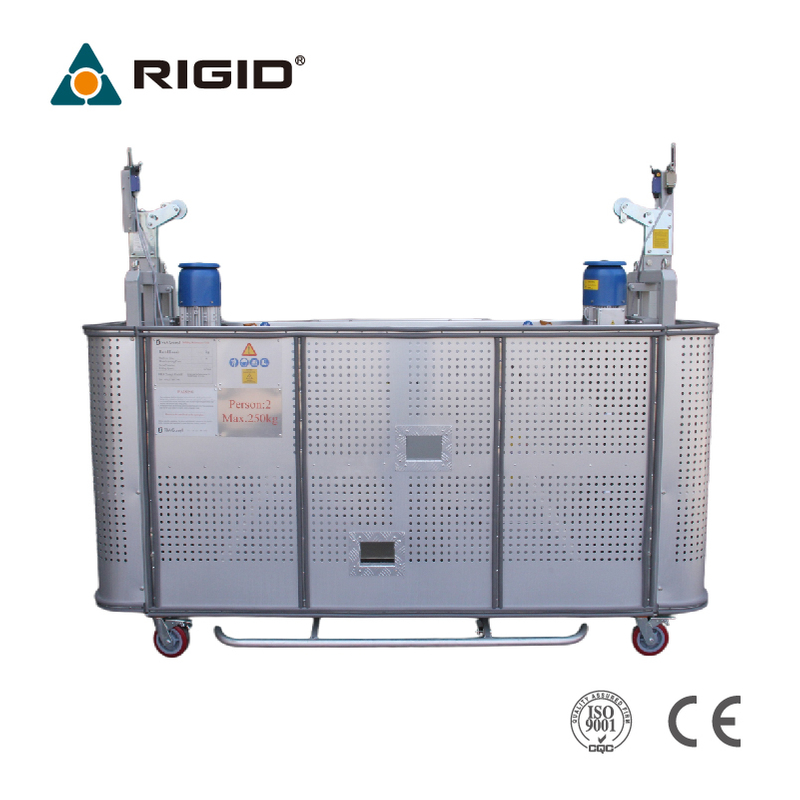

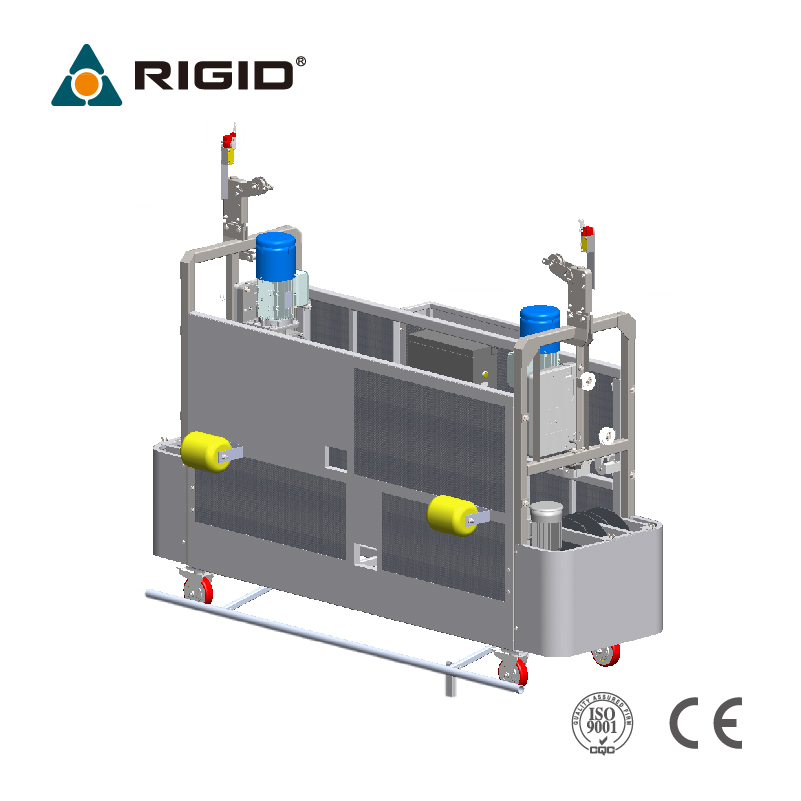

Double Point Suspended BMU Platform
Engineered for wide facades and heavy-duty applications, the double-point platform delivers a spacious working area and exceptional stability. Its high-strength aluminium alloy welded structure, combined with a hot-dip galvanised steel hoist mounting frame, achieves a lightweight design without compromising structural integrity.
Rated Load | 250 kg |
Lifting speed | 9 m/min |
Wire durm | SSD700（0.25kW / 0.37kW） |
Hoist Configuration | 2 units LTD50 , 1.5 kW each. |
Safety lock | LSF308 anti-tilt safety lock × 2 sets |
Wire durm | SSD700（0.25kW / 0.37kW） |
power | 380V / 400V / 415V AC, 50Hz（3P） |
Dia of wire rope | 8.3mm |
Working Environment | -10℃ to +55℃, wind force ≤ 5 (≤ 8.3 m/s) |

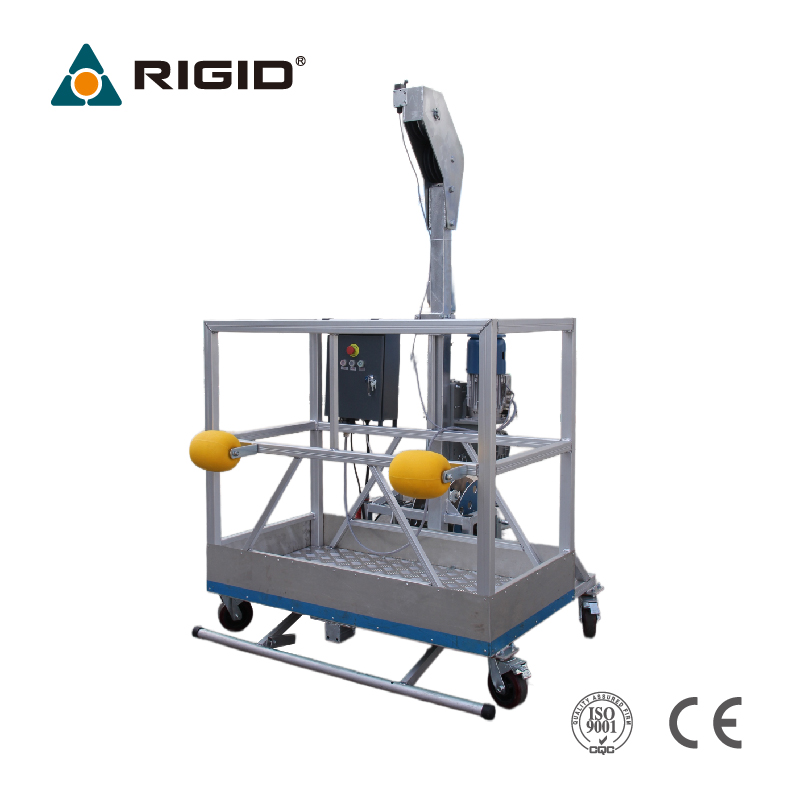

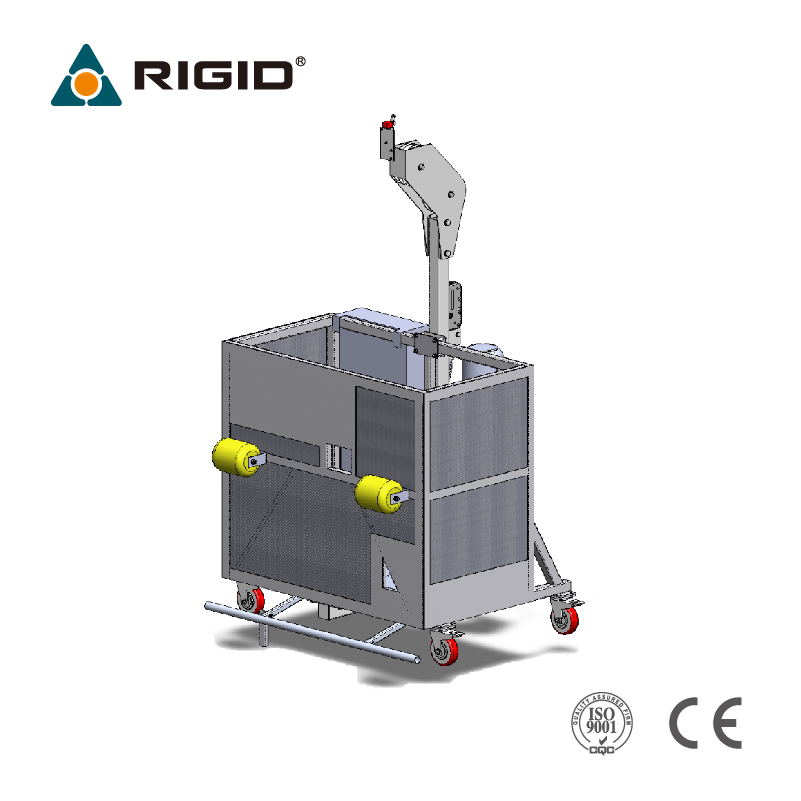

Single Point Suspended BMU Platform
Designed for confined spaces, localised facade maintenance, and lightweight operations, the single-point platform is compact and highly manoeuvrable. With a single centrally mounted hoist, its footprint is significantly reduced, allowing easy access to areas unreachable by double-point platforms.
Rated Load | 125 kg |
Lifting speed | 9 m/min |
Hoist Configuration | 1 unit LTD50，1.1 kW |
Safety lock | OSL308 Overspeed Safety lock× 1unit |
| power | 380V / 400V / 415V AC, 50Hz（3P） |
Wire durm | SSD700（0.25kW） |
Dia of wire rope | 8.3mm |
Working Environment | -10℃ to +55℃, wind force ≤ 5 (≤ 8.3 m/s) |
Special Feature | Lowering device / hour counter |

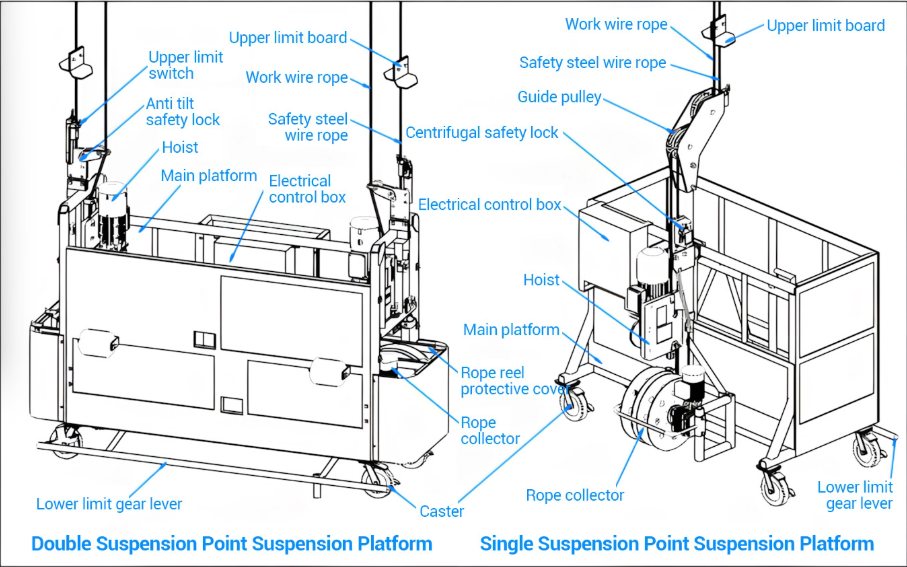

Model Comparison
Gain a comprehensive understanding of the technical specifications of double suspension point platforms and single lifting-point platforms, and choose the solution that best fits your project needs.
| Parameter Item | Double Point Suspended BMU Platform | Single Point Suspended BMU Platform |
| Rated Load | 250 kg | 125 kg |
| Increase Speed | 9 m/min | 9 m/min |
| Hoist Model | LTD50-P x 2 units | 1 unit LTD50-P |
| Hoist Power | 1.5 kW/unit | 1.1 kW |
| Type Of Safety Lock | LSF308 anti tilt safety lock | OSL308 overspeed safety lock |
| Number Of Safety Locks | 2 units | 1 unit (LTD series) |
| Rope durm Configuration | SSD700 (0.25kW / 0.37kW) | SSD700 (0.25kW) |
| Working Power Supply | 380V/400V/415V AC, 50Hz (three-phase five wire system) | |
| Dia. Of Steel Wire Rope | 8.3mm, | |
| Operating Temperature | -10℃ ～ +55℃ | |
| Wind Resistance Rating | ≤ Level 5 wind (≤ 8.3m/s) | |
| Platform Main Body Material | High strength aluminum alloy welding body, hot-dip galvanized steel hoist installation bracket | |
| Applicable Scenarios | Wide facade, heavy-duty operation, large building exterior wall | Narrow space, local maintenance, lightweight operation |
| Comply With Standards | GB/T19154-2017 / EN1808 / TUV CE | |
