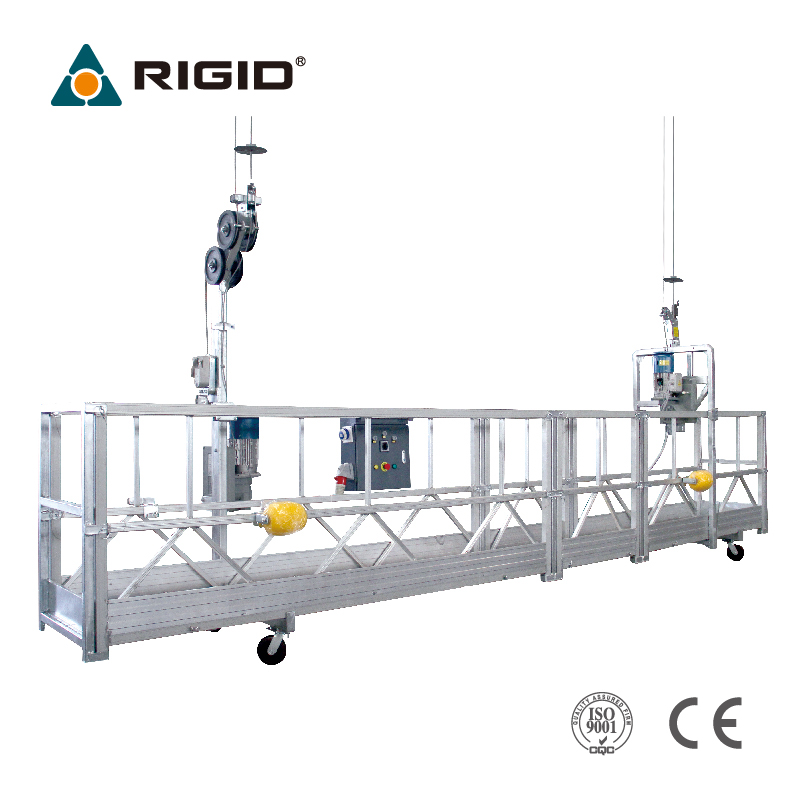

ZLP-CE Suspended Platform

Name: ZLP-CE Suspended Platform
Brand: Rigid
Rating: 5.0 (76 reviews)

As the global construction and maintenance industries increasingly demand higher safety and efficiency in high-altitude operations, the ZLP-CE series suspended working platforms have emerged. As an innovative product compliant with stringent European standards (CE certification), the ZLP-CE series not only inherits the advantages of traditional suspended working platforms but also undergoes comprehensive optimization in design, materials, and safety performance. It aims to provide safe, efficient, flexible, and economical solutions for various high-altitude tasks. This product introduction will detail the outstanding features of the ZLP-CE series and demonstrate its full capability to replace existing European counterparts on the market.

Model:
ZLP-CE
Brand:
Rigid
Code:
8428909090

Availability:

Quantity:



Inquire Add to Basket

ZLP-CE Series Suspended Working Platforms: An Excellent Alternative to European Standards

The ZLP-CE series suspended working platform is a modularly designed temporary suspended access equipment, specifically engineered to lift personnel and their working equipment to unlimited heights. Its wide range of

applications covers light-duty tasks such as exterior wall painting, decoration, refurbishment, jointing, and repairs, as well as heavy-duty operations like facade installation, chimney maintenance, silo and bridge inspection. With its lightweight design, ease of installation, high safety standards, and compliance with international regulations, the ZLP-CE series serves as an ideal alternative to scaffolding, offering significant long-term investment returns to users.

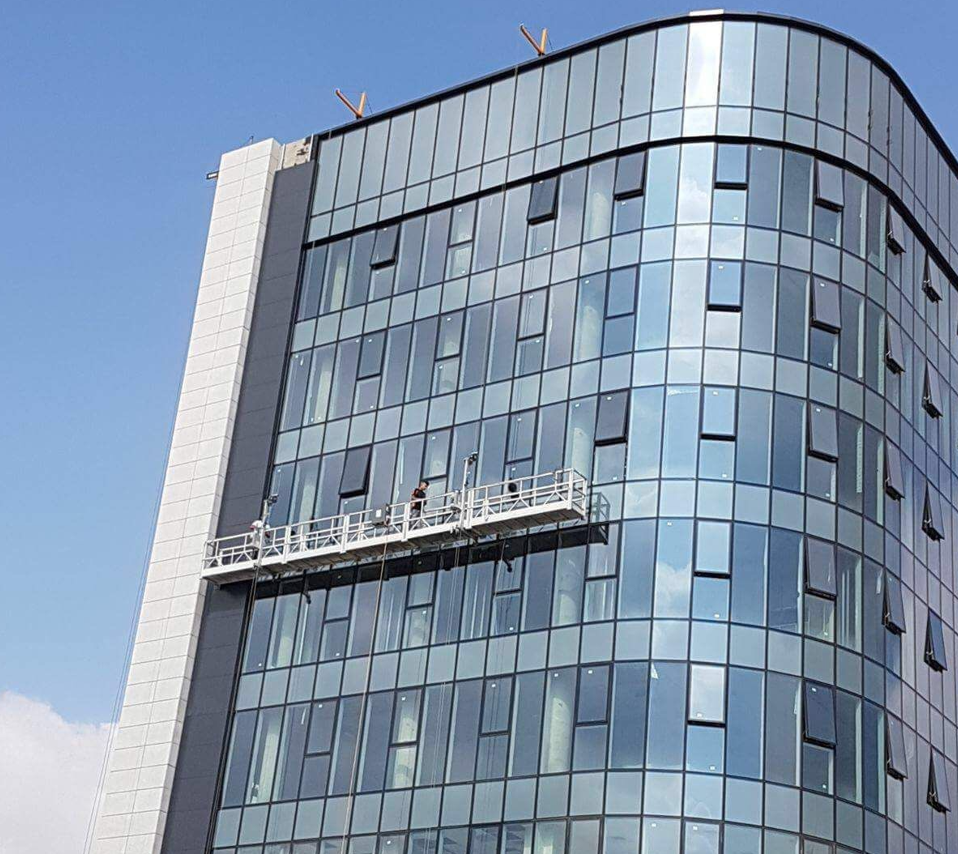

RIGID-ZLP-CE-1

Core Advantages and Features

1. Exceptional Versatility and Modular Design

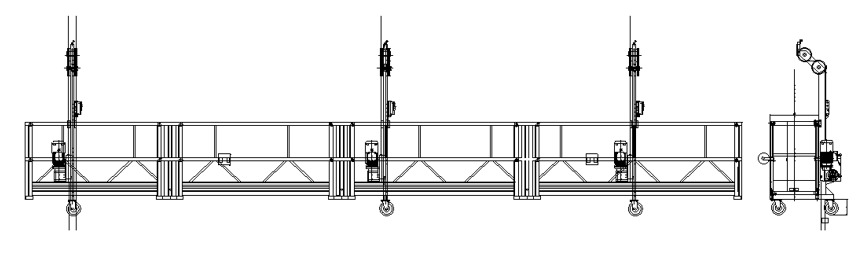

The ZLP-CE series features a highly flexible modular structure, allowing platform lengths to be freely combined from 2 meters to 16 meters according to project requirements (typically composed of standard sections of 2 or 3 meters) . This design significantly enhances the equipment's versatility, enabling it to adapt to building facades of various sizes and shapes. Whether it's narrow corners or wide walls, the ZLP-CE can handle them with ease. The internal width of the platform typically ranges from 0.6 meters, providing ample working space for operators .

2. Lightweight and High-Strength Materials

To ensure both portability and structural integrity, the main body of the ZLP-CE series platform is constructed from high-strength aluminum alloy, which is approximately 40% lighter than traditional steel platforms . Critical load-bearing components, such as stirrups, are made from high-quality galvanized steel, ensuring structural stability and corrosion resistance even under extreme working conditions. This combination of materials not only facilitates transportation and installation but also significantly extends the product's service life.

3. Comprehensive Safety Assurance Compliant with European Standards

The ZLP-CE series suspended working platforms strictly adhere to the EN 1808 European standard for suspended access equipment and have obtained CE certification and ISO9001 quality management system certification . To safeguard the lives of operating personnel, the platform is equipped with a series of advanced safety devices:

Hoist Service Brake: Integrated within the electric hoist, ensuring precise braking and platform stability.

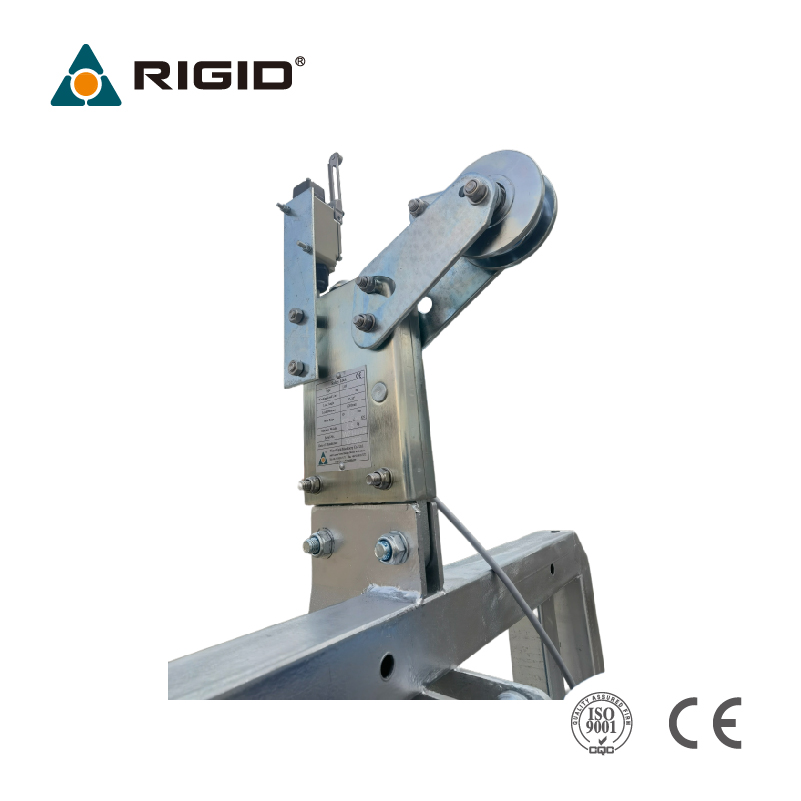

Dual Anti-Fall Safety Locks: Acting independently on the safety wire ropes, these devices rapidly lock the platform to prevent falls in case of main wire rope or hoist failure .
Overload Sensor: Integrated into the hoist in accordance with EN 1808 standards, it continuously monitors the platform load to prevent overloading .
Upper and Lower Limit Switches: Effectively control the platform's lifting and lowering range, preventing over-travel.
Manual Lowering in Power Failure: In the event of a sudden power outage, operators can safely and controllably descend manually via the centrifugal brake device, avoiding long delays in rescue.
Anti-Tilt Device: Monitors the platform's horizontal status and activates protective mechanisms immediately if tilting occurs.

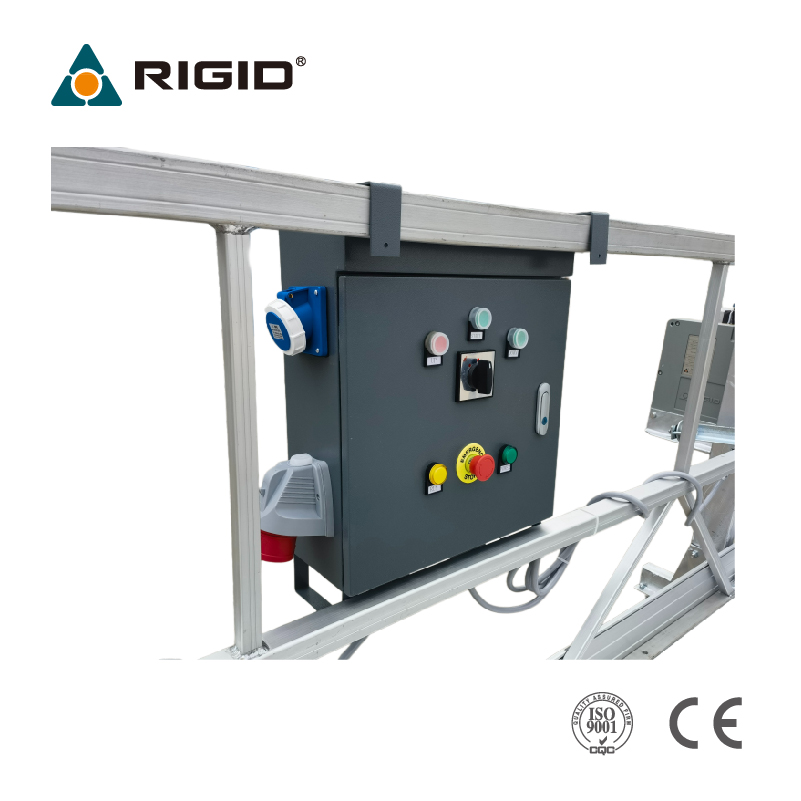

Emergency Stop Button: Allows operators to quickly cut off all power in emergency situations.
Phase Controller: Ensures correct power phase sequence, preventing motor reversal.

4. Diverse Suspension Methods

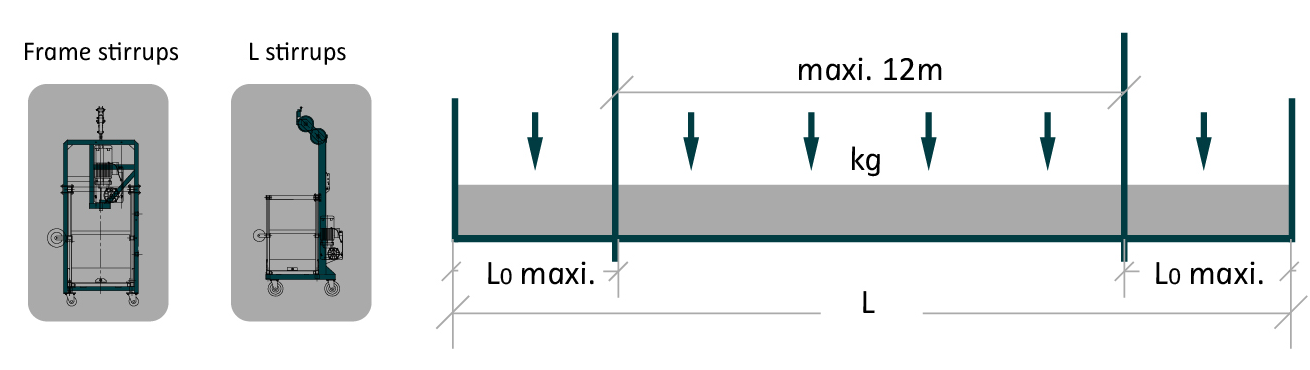

The ZLP-CE series offers various types of stirrups to accommodate different building structures and operational needs:

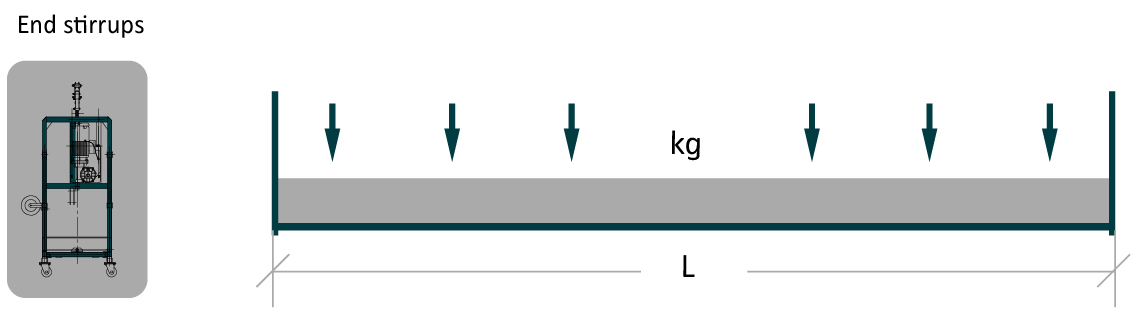

End Stirrup: Fitted at both ends of the platform, it is economical and lightweight, suitable for most linear facade operations .

L Stirrup: Positioned at the rear of the platform, behind the workers, providing a completely open working surface for unobstructed access to the entire facade .
Frame Stirrup: Slips over the platform like a frame, keeping the platform ends and building corners clear for easy access and operation .

zlp-ce2

5. Flexible Anchoring Solutions

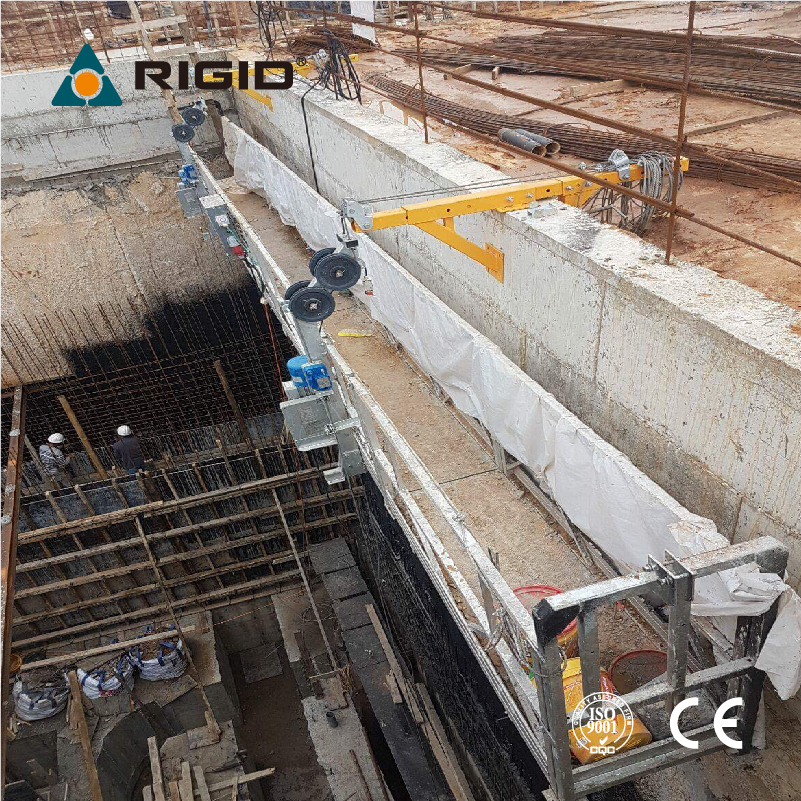

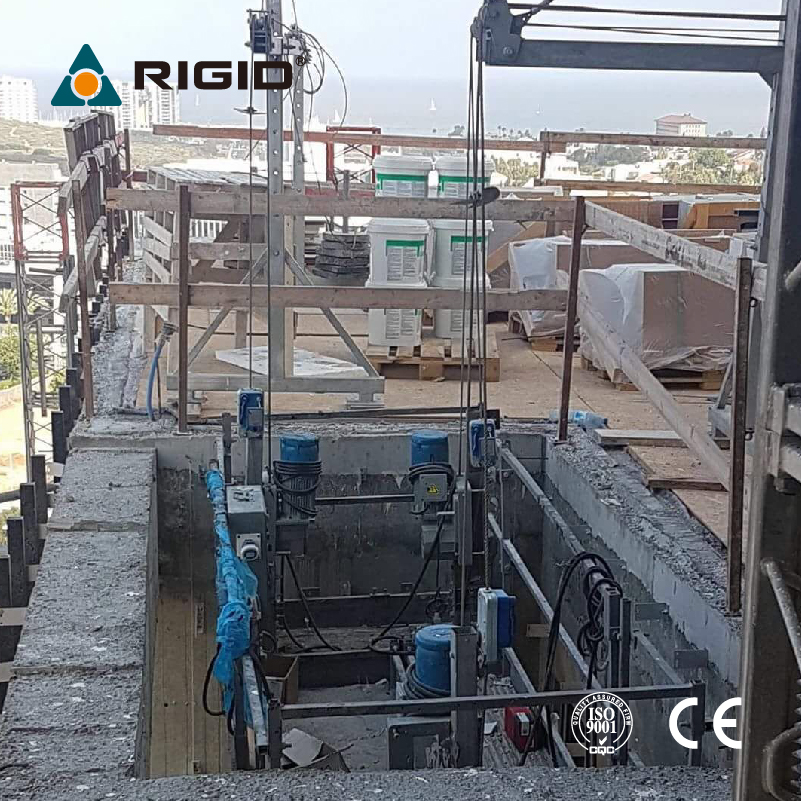

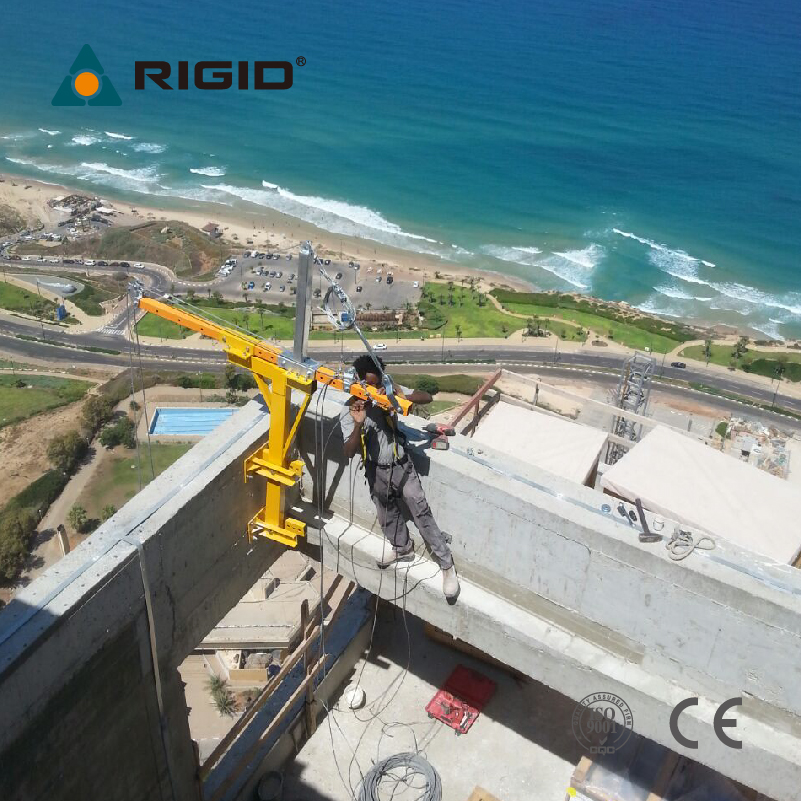

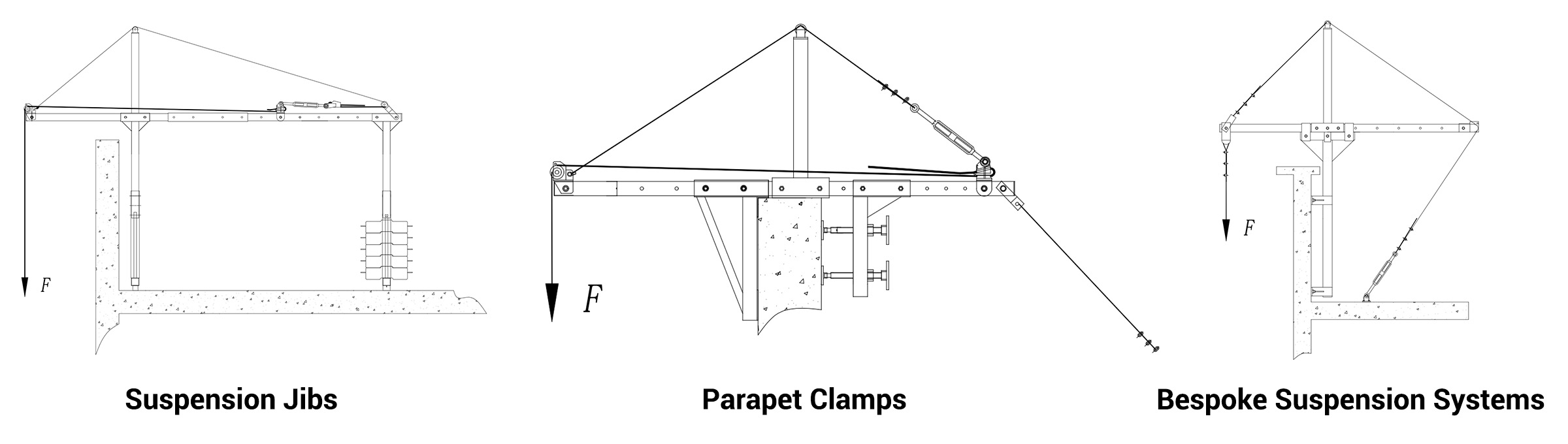

The ZLP-CE platform can be used with various suspension structures that comply with current standards and recommendations. According to EN 1808 standards, the safety factor for anchor points and suspension structures must be at least 3 . Common anchoring solutions include mobile suspension jibs and parapet clamps. These devices can be securely installed on different types of roof structures, providing reliable support for the platform.

Technical Specifications Overview

Type	ZLP800 (CE)
Rated Load*	Refer to the below working tables
Platform Length	2m - 16m
Platform Width	0.60m - 0.68m
Lifting Speed	9 m/min
Safety Devices	Overspeed/Anti-Tilting Safety Lock, Electromagnetic Brake, Manual Lowering
Max Lifting Heigh	Unlimited (limited by wire rope length)
Platform Material	Aluminum Alloy
Certifications	CE, ISO9001 (EN 1808)

*The Platform Length vs. Load Capacity Table

Length of platform	*SWP average (kg)	Number of persons max.	**RLmax include persons (kg)	Cantilever length recommended(m)	***W Max Load on Cantilever section(kg)
2m	300	2	400	0	0
3m	360	2	400	0-0.5	0
4m	405	2	400	0-0.5	0
5m	425	2	400	0.5-1	120
6m	445	3	400	0.5-1	120
7m	490	3	400	0.5-1.5	120
8m	510	4	400	0.5-1.5	120
9m	540	4	460	0.5-1.5	150
10m	575	5	480	0.5-2	150
11m	600	4	460	0.5-2	150
12m	660	3	400	1-2.5	150
13m	725	3	400	1-2.5	150
14m	745	3	400	1-3	120
15m	760	3	350	1-3	120
16m	785	3	350	1-3	120
SWP - self weight of platform include L stirrups, hoists, control box, safety devices and ~50 meters of electrical cable. RL rated according to EN1808 par.6.3.2.1 - total rated load includes assumed mass weight of a persons , personal equipment, mass of materials and possible loads on cantilever sections of the platform. **W is a part of total distributed RL. When the working height more than 50 meters, RL reduced by 10 kg per 30 meters increasing.

The ZLP-CE series suspended working platforms, with their advanced design philosophy, high-quality materials, comprehensive safety protection, and strict CE certification, are fully capable of meeting and exceeding the requirements of the European market for suspended working platforms. It not only aligns with European counterparts in technical parameters but even surpasses them in certain aspects, while offering a more competitive cost-effectiveness. Choosing ZLP-CE means choosing a safe, efficient, reliable, and internationally compliant modern high-altitude operation solution, making it an ideal partner for your project's success.

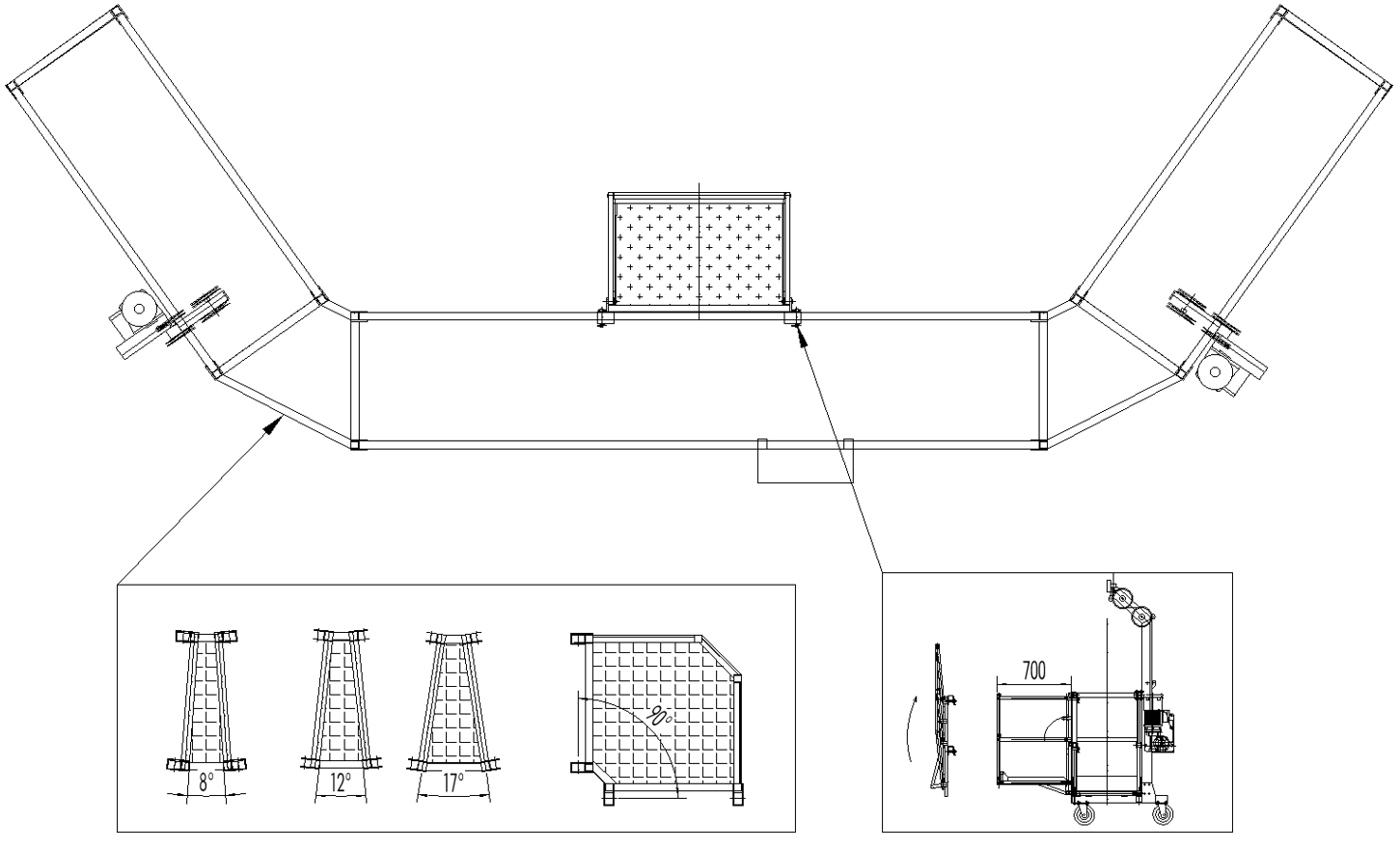

Modular Corner Platform System: Flexible Adaptation, Seamless Operation

Designed to tackle complex building facades and curtain wall configurations, our Modular Corner Platform System offers unparalleled flexibility and adaptability. With precisely engineered corner sections, the platform can effortlessly navigate around internal corners, external corners, or curved structures of buildings, enabling continuous and seamless high-altitude operations.

This system not only inherits the advantages of the ZLP-CE series for quick and convenient installation, safety, and reliability but also maximizes versatility through innovative corner modules. Platform sections can be adjusted to various precise angles, including but not limited to 8°, 12°, 17° (for smooth transitions on curved facades) and the standard 90° (for right-angle corners), allowing it to perfectly conform to almost any complex architectural contour.

Experience the efficiency and convenience brought by the Modular Corner Platform System – while maintaining ultimate durability and safety, your operational scope will no longer be limited, easily tackling various irregularly shaped high-altitude challenges.

Auxiliary Platform (Sub-platform): Extending Reach, Enhancing Efficiency

To further expand the working range and enhance flexibility, the ZLP-CE series can also be configured with an Auxiliary Platform. The auxiliary platform serves as an effective complement to the main platform, enabling workers to access narrow areas, recessed sections, or special structures that are difficult for the main platform to reach directly. It can function not only as an independent working point but also as an auxiliary space for storing tools, materials, or small equipment, thereby optimizing workflow and reducing back-and-forth trips.

The design of the auxiliary platform also adheres to high safety standards, ensuring stable connection with the main platform. Its lightweight and easy-to-install features make on-site configuration more convenient, providing a more comprehensive solution for diverse building maintenance and construction tasks.
