GJPT-P
Rigid
| Quantity: | |
|---|---|

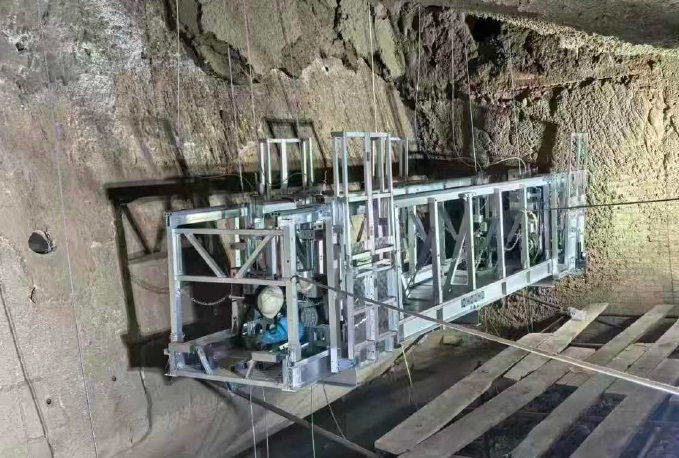

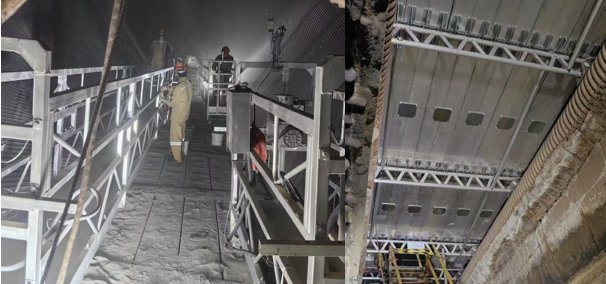

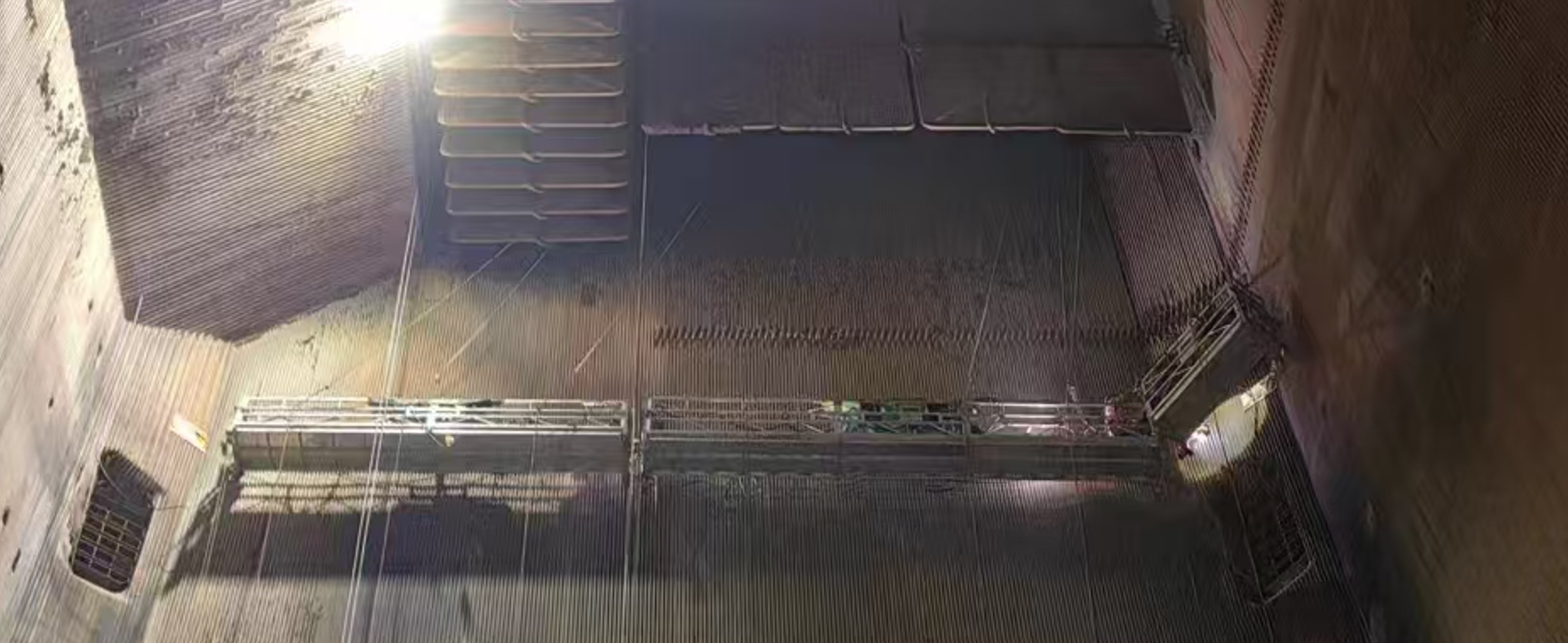

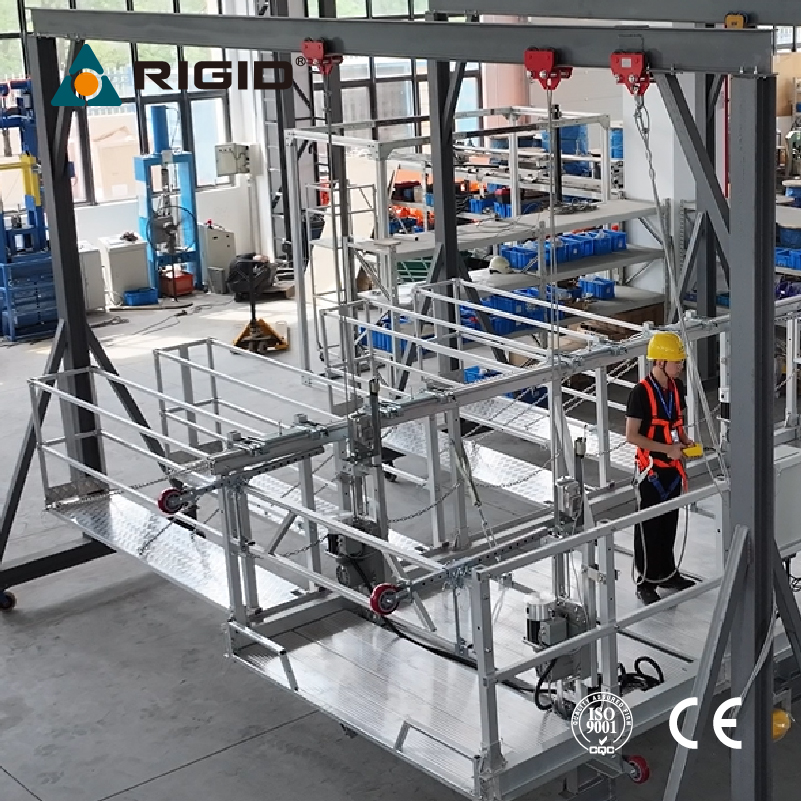

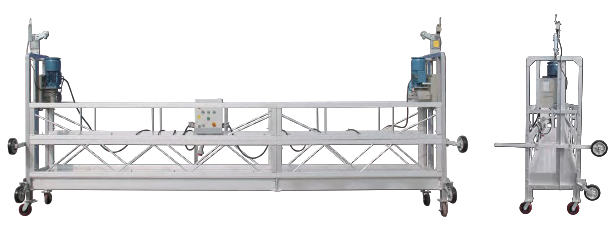

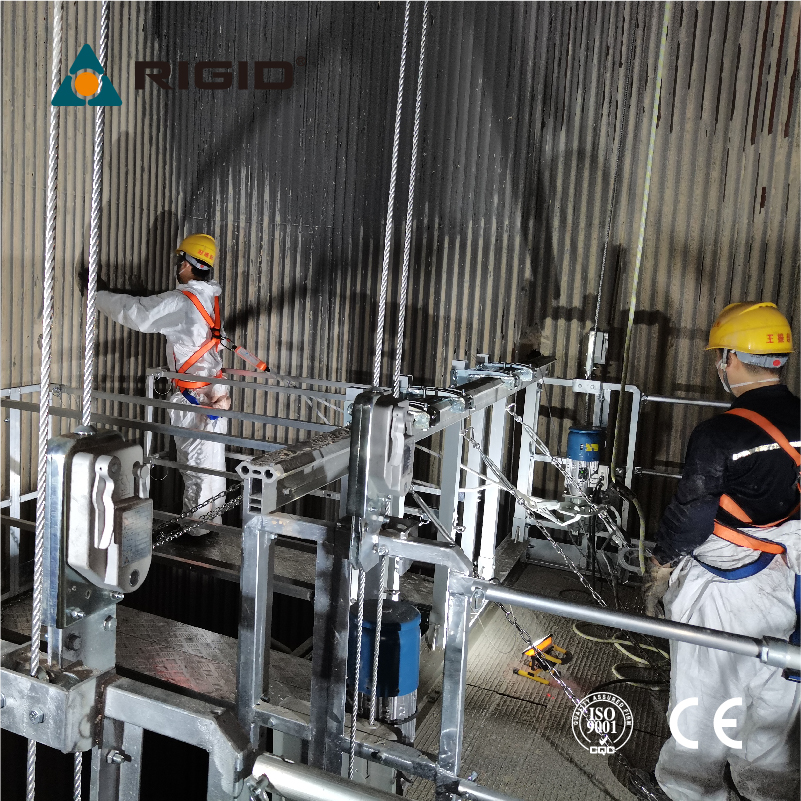

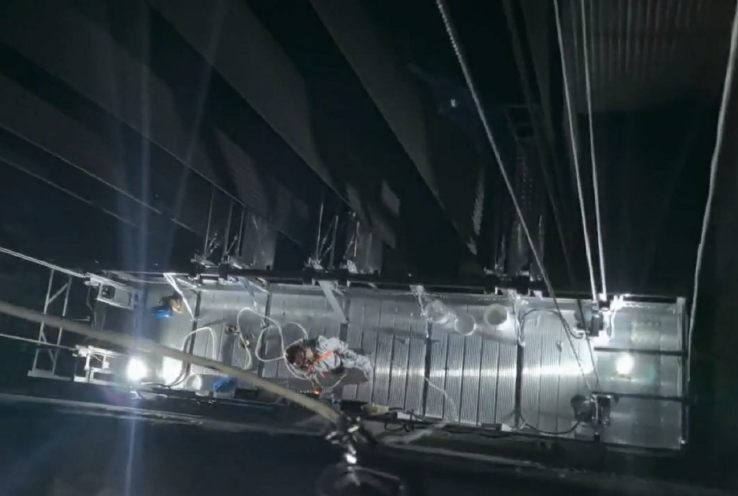

The RIGID boiler furnace maintenance lifting platform (GJPT-P series) is a suspended man-riding equipment specially designed for the maintenance of water-cooled walls in large boilers. By means of a suspension mechanism erected on top of the boiler, the platform is driven by hoists and wire ropes to move up and down along the vertical surface of the boiler's water-cooled wall. The product is widely used for the inspection and maintenance of refractory materials, membrane walls, and spray gun interfaces in circulating fluidized bed boilers, pulverized coal boilers, and waste incinerators.
As a technological leader in China's high-altitude operation equipment sector, RIGID provides global users with reliable high-altitude operation solutions based on a strict triple-standard system: 'Chinese Standard + EU CE Standard + RIGID Factory Standard'. Our boiler maintenance platform not only complies with the GB/T34029-2017 national standard but also sets an industry benchmark in safety, economy, and efficiency.
Core Advantages and Value
1、Outstanding Safety Guarantee System
In the confined and complex internal environment of a boiler, operational safety is the primary consideration. The RIGID boiler maintenance platform is equipped with multiple independent safety protection systems to ensure the absolute safety of personnel and equipment.

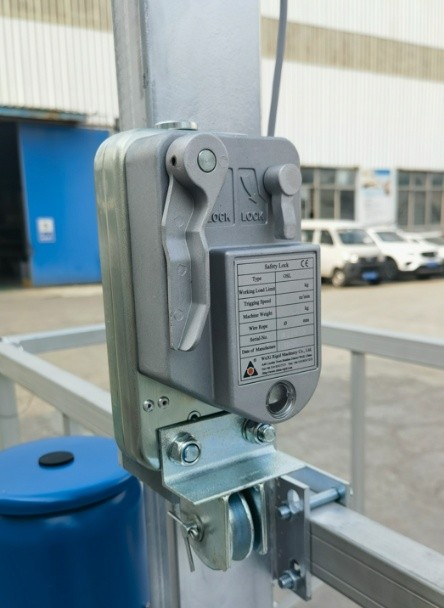

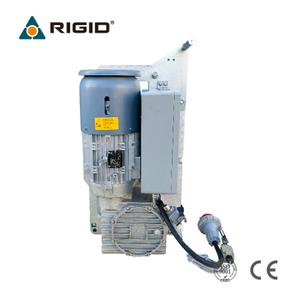

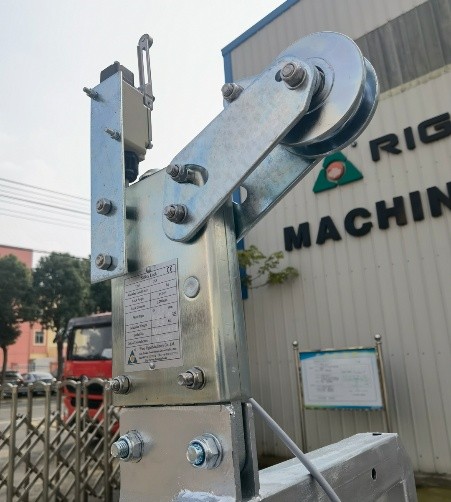

First, the platform adopts a dual fall-protection system independently configured for personnel and equipment. The hoist in the control (active) safety system is equipped with a power-off braking device, while the safety lock in the fall-arrest (triggered) safety system has a fall-prevention function. In addition, the personal fall-arrest safety system uses a lifeline independent of the equipment, achieving separation of man and machine to maximize the life safety of operators.
Second, the equipment is equipped with an upper limit protection device. When the platform reaches the set height, it will automatically stop ascending, effectively preventing top-crashing accidents. In emergency situations such as sudden power outages, the platform features a powerless descent function, allowing operators to manipulate the descent lever to land the platform safely at a uniform speed.
2、Significant Economic and Efficiency Improvements
Traditional boiler maintenance often relies on building full-scale scaffolding, a method that is not only time-consuming and labor-intensive but also poses significant safety risks. The RIGID boiler maintenance platform replaces traditional manual climbing and scaffolding with mechanized equipment, drastically shortening the maintenance period.
According to industry application data comparisons, using a suspended maintenance platform can save about 72% of total man-hours throughout the entire process of preparation, erection, maintenance, and dismantling compared to manual scaffolding. This not only reduces labor intensity but also directly minimizes economic losses caused by boiler shutdown for maintenance, enhancing the overall operational efficiency of the enterprise.
3、Flexible and Convenient Modular Design

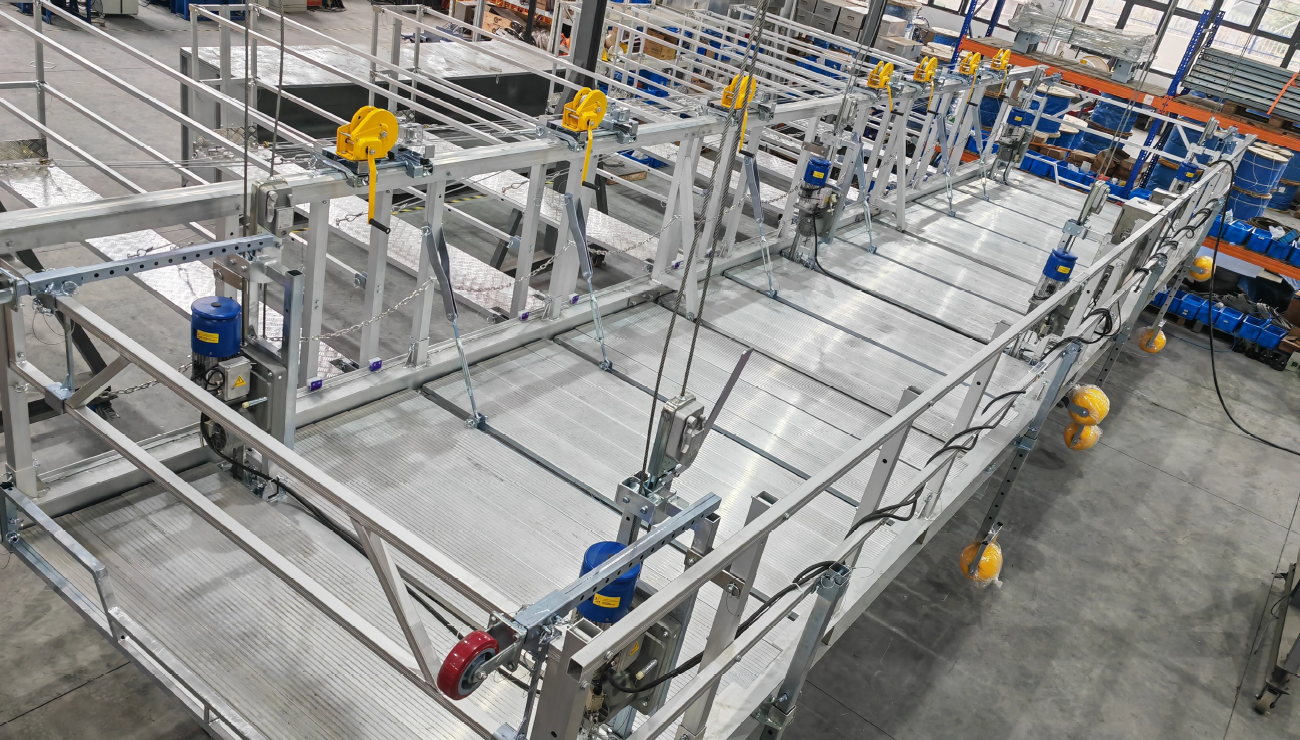

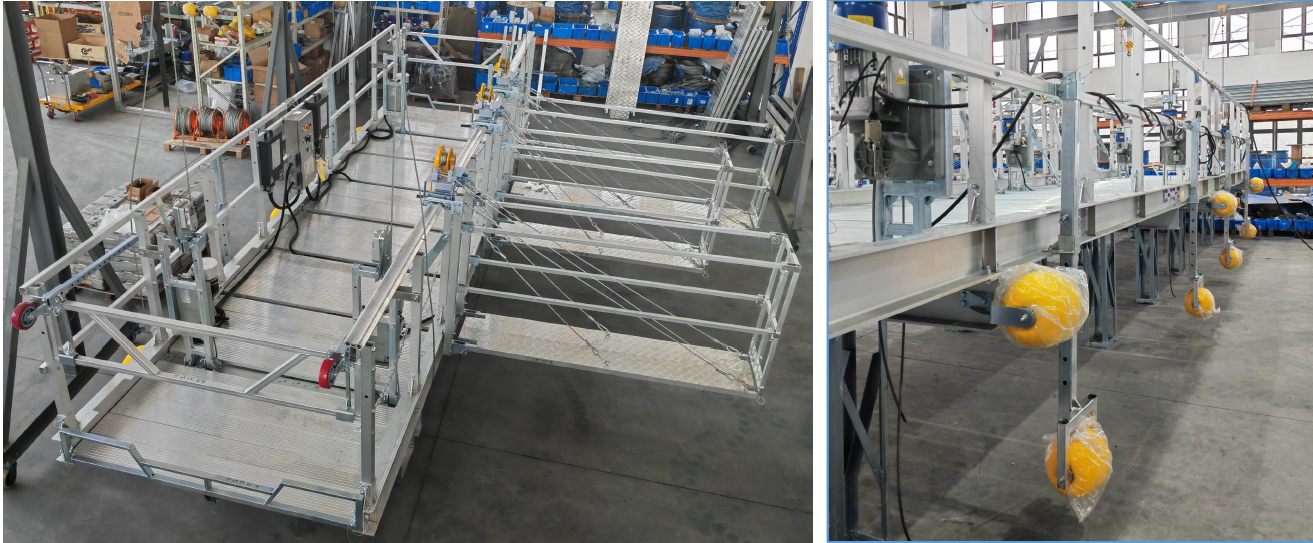

To adapt to the narrow entry spaces inside boilers, the RIGID platform utilizes lightweight aluminum alloy profiles and features an ingenious modular design. All components can be disassembled into flat pieces, allowing them to easily pass through manholes with a diameter of 450 mm or more into the furnace.
Once inside the furnace, the components can be assembled into straight sections or required platform combinations using a patented quick-connection system. This design not only facilitates transportation and installation but also eliminates the tedious bolt-tightening process, avoiding the risk of losing parts inside the furnace. The platform offers two control modes: panel operation and handle operation, which can be flexibly switched according to on-site working conditions.
