RIGID Car-as-Platform Installation Tools

Name: RIGID Car-as-Platform Installation Tools
Brand: Rigid
Rating: 5.0 (40 reviews)

Versatile Electric Hoistfor Elevator Installation

RIGID electric hoists power the world's leading scaffoldless elevator installation methods — false car, car-as-platform, or traditional scaffolding. We build the lifting tool; you define the method.

The Lifting Tool, Not the Method

RIGID provides the hoist, adapters, and accessories — the reliable power source behind any elevator installation method.

Your Method. Our Power

Every elevator manufacturer has its own preferred installation process. RIGID doesn't define your method — we give you the lifting muscle to execute it efficiently and safely.

Our LTD-P series electric hoists and OSL-series overspeed fall arresters are designed as universal lifting tools that integrate seamlessly into:

False car installation— temporary platform suspended by RIGID hoist

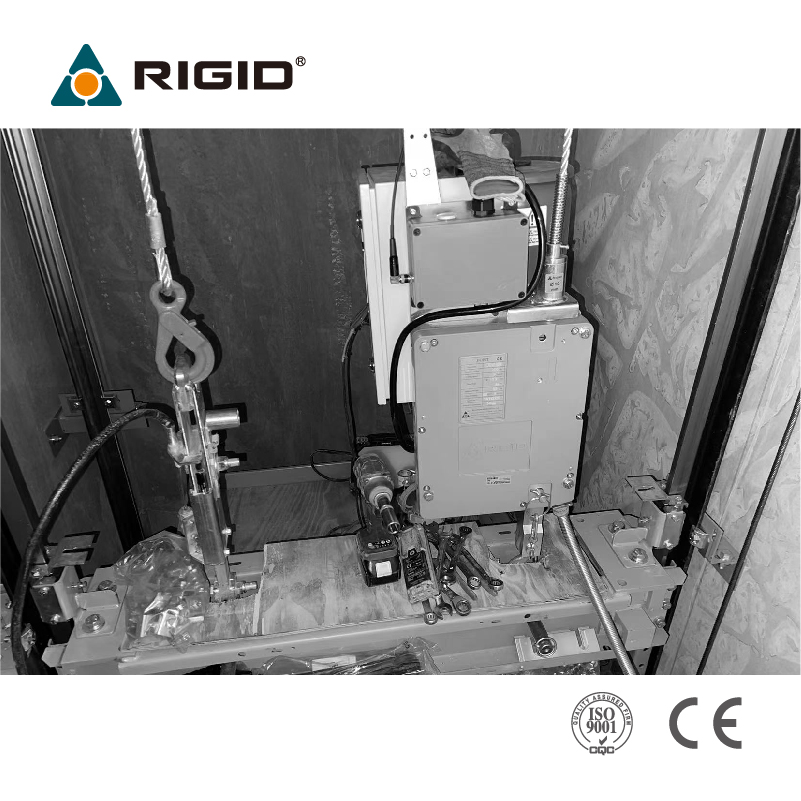

Car-as-platform installation— using the elevator car itself as the work platform
Scaffold-assisted installation— traditional method with powered rail lifting
Shaft equipment lifting— doors, brackets, and wiring from the car top

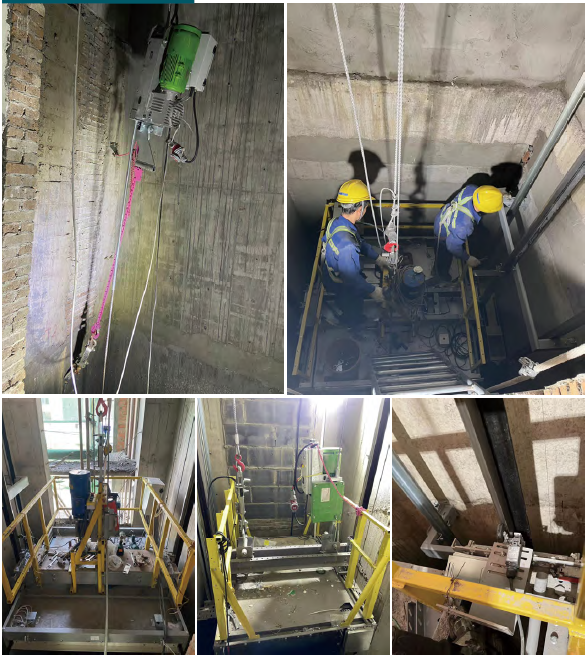

Over 60 countries. Hundreds of thousands of installations. One lifting tool trusted by elevator professionals worldwide.

Compatible with Every Installation Method

Defined by elevator OEMs. Powered by RIGID.

Compatible with Every Installation Method

Defined by elevator OEMs. Powered by RIGID.

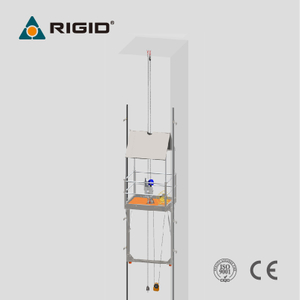

False Car Method

RIGID hoist suspends a temporary work platform (False car). Installer works top-down, then dismantles the platform. Most flexible — works before elevator car arrives.

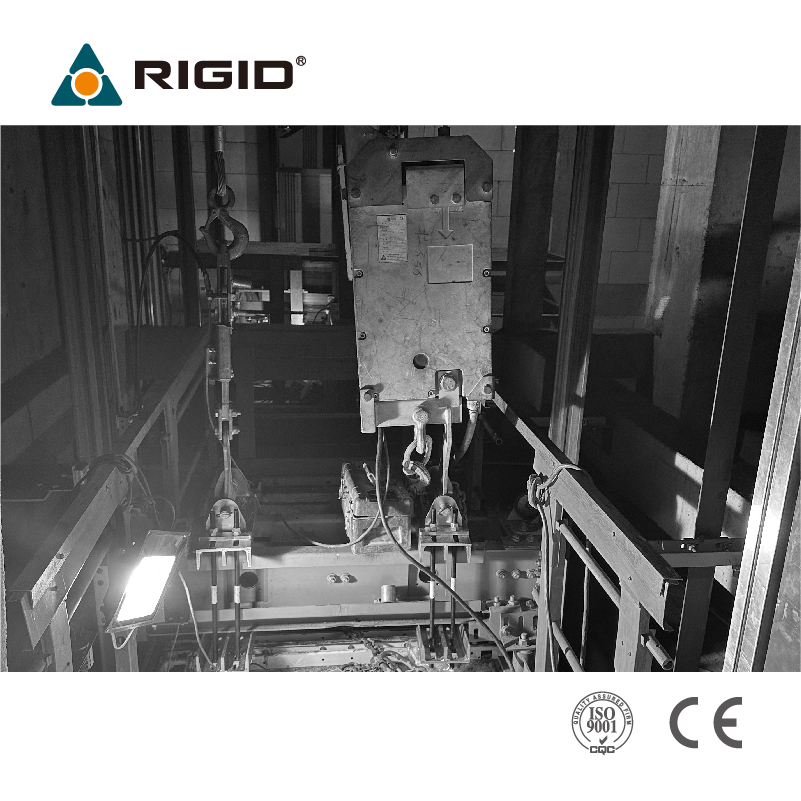

Car-as-Platform

RIGID hoist drives the actual elevator car down the shaft. Car roof becomes work platform. No dismantling — car is ready for final commissioning.

️Scaffold Method

RIGID MiniHoist (MH series) used as a rail lifting tool on traditional scaffold setups. Fast, wireless-controlled guide rail positioning.

Custom mounting adapter

RIGID adapters and mounting brackets fit various elevator car structures. Work with your OEM-specific work platform setup.

Model:
RIGID LTD-P
Brand:
Rigid

Availability:

Quantity:



Inquire Add to Basket

Scaﬀoldless Elevator Installation Technology

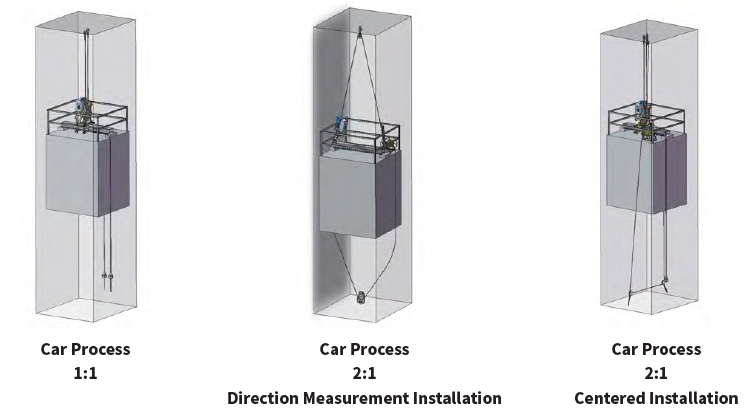

Elevator Car Installation method

“Elevator Car Installation Technology” refers to the use of new or existing cars as work platforms, usually using the car ceiling as a platform. However, the platform is driven by a climber rather than a traction machine. This type of technology requires using two indepen-dent means for fall protection while installing platforms. It is a fast installation process, and the elevator car can be directly used as a formal elevator car without the need for disassem-bly and assembly after being used as a platform.

Product features

The elevator car is designed to perfectly match the track spacing at its installation location, ensuring precise alignment. The installation of a top safety guarding device further enhances the system's operational safety and reliability.
With high installation eﬃciency, it utilizes a new elevator car without the need for repeated installation and removal of platforms.
The elevator car structure has high strength, meeting the requirements of heavy load operation.
By using climbers and force gauges, the top hook can be quickly detected, improving safety.
Climbers can be used for serving as guide rail lifting tools, ensuring fast and stable lifting. Using speed limiters and safety gear as one of the protective measures is more reliable.

Why Elevator Professionals Choose RIGID

Manufacturer Direct

25,000 m² factory. 15 years of hoist design expertise. National High-Tech Enterprise + E-S-P certified.

TÜV CE Certified

Full product line certified by TÜV Rheinland, Germany. Meets European machinery directive standards.

Global Track Record

Exported to 60+ countries. Used by major elevator installation contractors in Europe, America, Middle East, and Asia.

Method-Agnostic Design

Works with any OEM's installation method. We don't lock you into a specific process — we power yours.

Complete Kit Supply

Hoist + fall arrester + accessories + wire rope from one source. One PO, one shipment, full compatibility.

Dual Safety Built-in

Overspeed fall arrester + safety tongs = two independent protection layers. Complies with global safety standards.

Hoist Product Line

Choose the configuration that matches your load and speed requirements.

LTD-P Series — Climber Hoist

The primary lifting tool for false car and car-as-platform methods. Mounted on the car ceiling beam or platform frame.

LTD100-10P18

2:1 Suspension

1,000 kg

Single Climber Capacity

Max system load (2:1):2,000 kg

Working speed:9 m/min

Wire rope: Ø 10.2 mm

Power: 4 kW

LTD200-14P12

2:1 Suspension

2,000 kg

Single Climber Capacity

Max system load (2:1):4,000 kg
Working speed:6 m/min
Wire rope: Ø 14.0 mm
Power: 5.5 kW

LTD100-10P9

1:1 Suspension / Standard

1,000 kg

Single Climber Capacity

Max system load (1:1):1,000 kg
Lifting speed:9 m/min
Wire rope: Ø 10.2 mm
Power: 2.2 kW

LTD200-14P6

1:1 Suspension / Heavy Duty

2,000 kg

Single Climber Capacity

Max system load (1:1):2,000 kg
Lifting speed:6 m/min
Wire rope: Ø 14.0 mm
Power: 4 kW

Suspension	Model	Capacity (kg)	Speed (m/min)	Max System Load (kg)	Rope Ø (mm)	Power (kW)
2:1	LTD100-10P18	1,000	9 *	2,000	10.2	4.0
2:1	LTD200-14P12	2,000	6 *	4,000	14.0	5.5
1:1	LTD100-10P9	1,000	9	1,000	10.2	2.2
1:1	LTD200-14P6	2,000	6	2,000	14.0	4.0

* 2:1 working speed = hoist rated speed ÷ 2. Hoist rated speed: LTD100-10P18 = 18 m/min, LTD200-14P12 = 12 m/min.

MH Series — MiniHoist (Rail Lifting)

Compact electric hoist for guide rail lifting and positioning. Ideal for scaffold-based installations and false car material handling.

Model	Capacity (kg)	Speed (m/min)	Lifting Height (m)	Power (V/Hz)	Control
MH200	200	20	≤ 100	230 / 50–60	Pendant remote
MH500	500	14	≤ 120	230 / 50–60	Pendantremote
MH1000	1,000	10	≤ 150	400 / 50–60	Pendant remote

Optional Features

Single-phase or three-phase power supply
Steel wire ropes in various lengths
Radio remote control with extended range
Reeving kit for doubling the load capacity (2:1)

Safety — Built In, Not Added On

Every RIGID installation hoist is backed by dual fall protection and TÜV CE-certified safety systems.

OSL Overspeed Fall Arrester

Centrifugal mechanism activates if descent exceeds 30 m/min. Two models: OSL510 (1,000 kg) and OSL512 (1,600 kg). Locking distance ≤ 200 mm.

OSL510: 1,000 kg / Ø10.2OSL512: 1,600 kg / Ø11.5

Safety Tong (Secondary Lock)

Manual or automatic secondary descent protection. Activated via speed limiter cable or manual release. Provides independent mechanical locking on guide rails.

Anti-Derailment System

An on/off limit switch installed on the platform. When the platform rises to a section without guide rails, the switch triggers and cuts the upward power supply — preventing the platform from running off the guide rails.

Force Gauge Detection

Measure top hook tension quickly with integrated force gauges and climbers. Ensures load distribution is within safe limits before work begins.

Safety Device	Model	Working Load (kg)	Tripping Speed (m/min)	Wire Rope Ø (mm)
Overspeed Fall Arrester	OSL510	1,000	30	10.2
Overspeed Fall Arrester	OSL512	1,600	30	11.5
Safety Tong	ST-01	1,000–4,000	Manual / Auto	—
Anti-Derailment Switch	ADS-01	—	No guide rail (cuts upward power)	10.2–14.0

Why Elevator Professionals Choose RIGID

Manufacturer Direct

25,000 m² factory. 15 years of hoist design expertise. National High-Tech Enterprise + E-S-P certified.

TÜV CE Certified

Full product line certified by TÜV Rheinland, Germany. Meets European machinery directive standards.

Global Track Record

Exported to 60+ countries. Used by major elevator installation contractors in Europe, America, Middle East, and Asia.

Method-Agnostic Design

Works with any OEM's installation method. We don't lock you into a specific process — we power yours.

Complete Kit Supply

Hoist + fall arrester + accessories + wire rope from one source. One PO, one shipment, full compatibility.

Dual Safety Built-in

Overspeed fall arrester + safety tongs = two independent protection layers. Complies with global safety standards.

System Composition

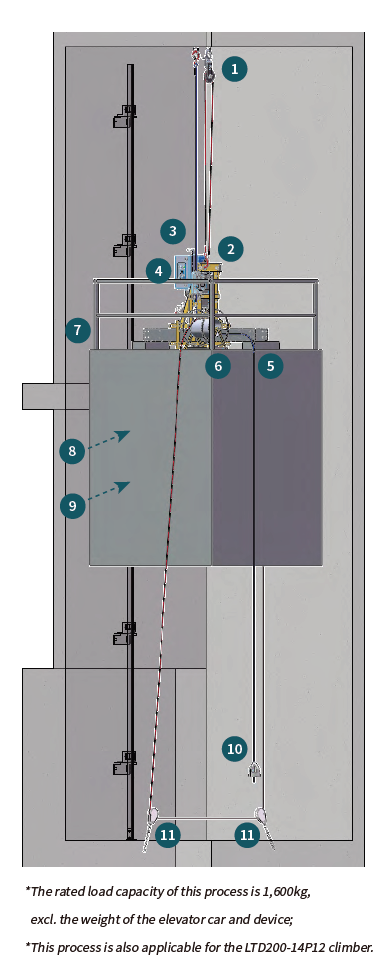

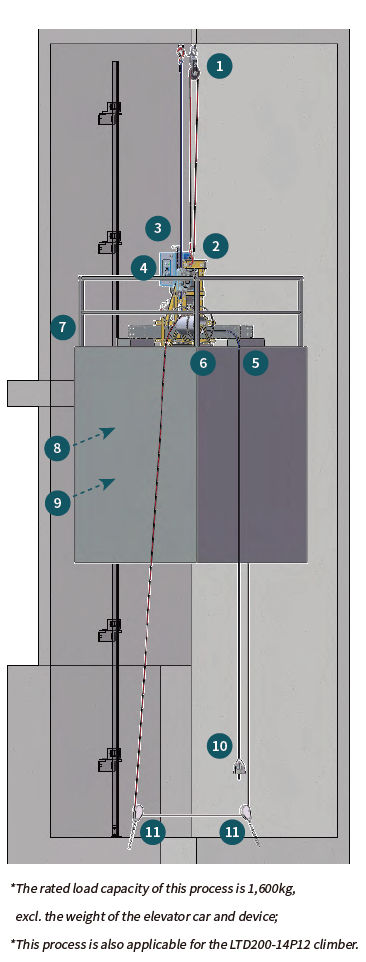

2:1 Elevator Car Process Climber Centered

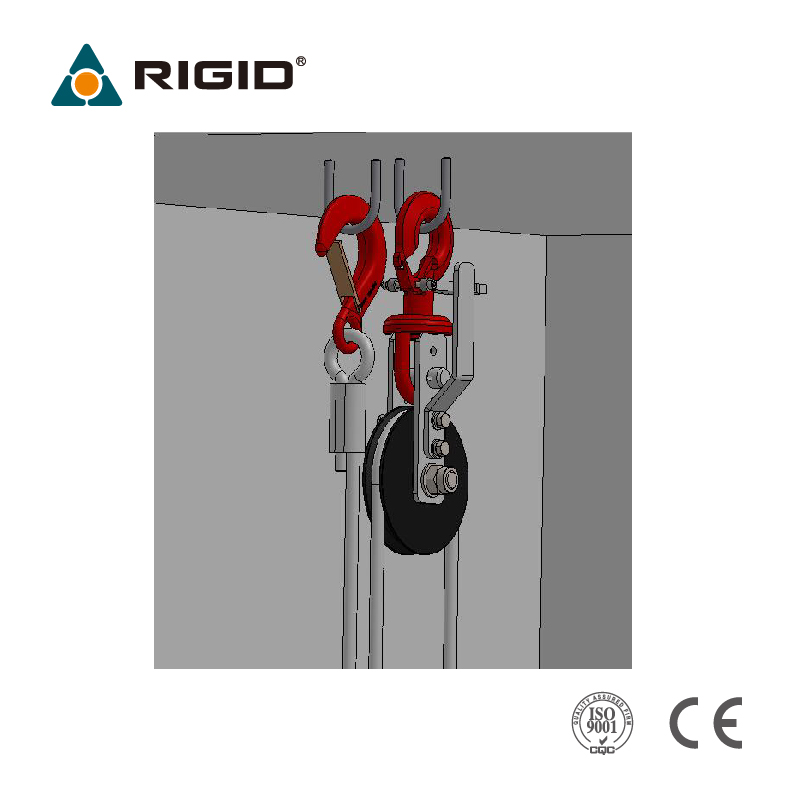

1. Diverter Pulley

2:1 Process standard conﬁguration;

quipped with telescopic rods for easy suspension outside the shaft;

2. Climber Installation Bracket

The bracket is fastened to the middle of the car ceiling beam and

can be equipped with climbers and safety locks

3. High Speed Climber

LTD100-10P18 Integrated control system Climber, at a speed of 18m/min

4. Overspeed Fall Arrester

OSL512 Overspeed fall arrester with a rated load of 1,600kg;

The platform will automatically lock when it descends more than 30m/min; Applying Ф11.5 high-strength steel wire rope.

5. Steel Wire Rope Guide

Installed on the bracket and guiding the steel wire rope towards the side of the elevator car.

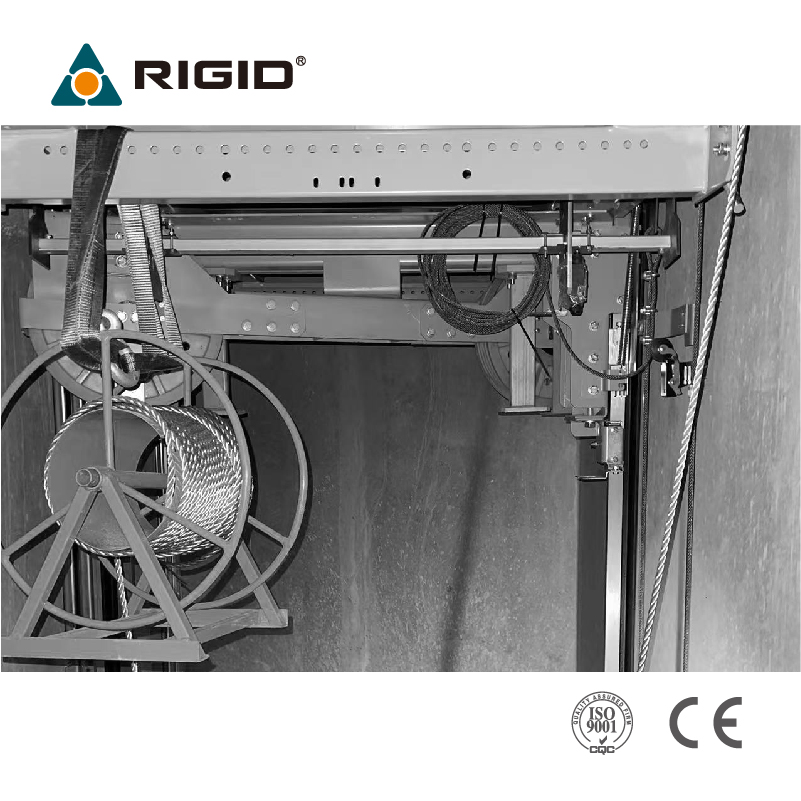

6. Steel Wire Rope And Rope Winding Reeler

For climbers Ф 10.2 steel wire rope and its winding device;

The length of the steel wire rope should be conﬁgured to at least twice of the shaft height.

7. Elevator Car Top Platform

Aluminum protective railings should be installed around the platform.

8. Anti-derailment Protection System

The climber control box is equipped with an anti-derailment switch socket. The anti-derailment switch component should be connected to the climber and installed on the platform to support the guide rail laterally.

9. Safety Tong Assembly

The second descent protection of the platform is achieved by manually triggering the Safety tong trigger or automatically triggering the speed limiter.

10. Heavy Hammer

Maintaining the safety lock wire rope vertically suspended.

11. Guiding Pulley

Installed on both sides of the pit, maintaining the safety lock of the climber and the vertical suspension of the steel wire rope;

Maintain 2:1 process mode, the steel wire rope should not be entangled.

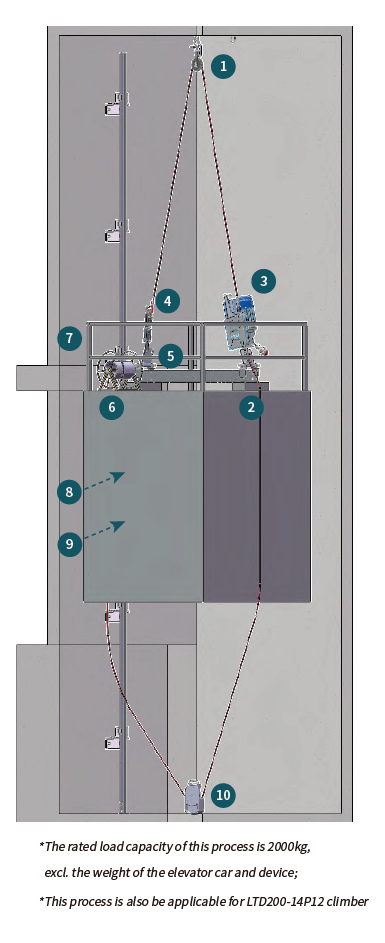

Elevator Car Technology’s 2:1 Climber Lateral

1. Diverter Pulley

2:1 Process standard conﬁguration;

Equipped with telescopic rods for easy suspension outside the shaft;

2. Climber Adapter

A dedicated adapter (exclusive to each manufacturer) can connect the climber and fasten it to the side of the car ceiling beam.

3. High Speed Climber

LTD100-10P18 Integrated control system Climber, at a speed of 18m/min

4. Safety Tong Trigger

The Safety tong can be manually triggered to lock the platform.

After using the secondary protective chain, the guide rail can be lifted using a climber.

5. Trigger Adapter

A dedicated adapter (exclusive to each manufacturer) can be connected to the safety gear trigger and fastened to the side of the car ceiling beam.

6. Steel Wire Rope And Rope Winding Reeler

For climbers Ф 10.2 steel wire rope and its winding device;

The length of the steel wire rope should be conﬁgured to at least twice of the shaft height.

7. Elevator Car Top Platform

Aluminum protective railings should be installed around the platform.

8. Anti-derailment Protection System

9. Safety Tong Assembly

The second descent protection of the platform is achieved by manually triggering the Safety tong trigger or automatically triggering the speed limiter.

10. Steel Wire Rope Balance Weight

Keep the steel wire rope of the climber tightened and suspended, and maintain a 2:1 process mode without entangling the steel wire rope.

1:1 Elevator car technology

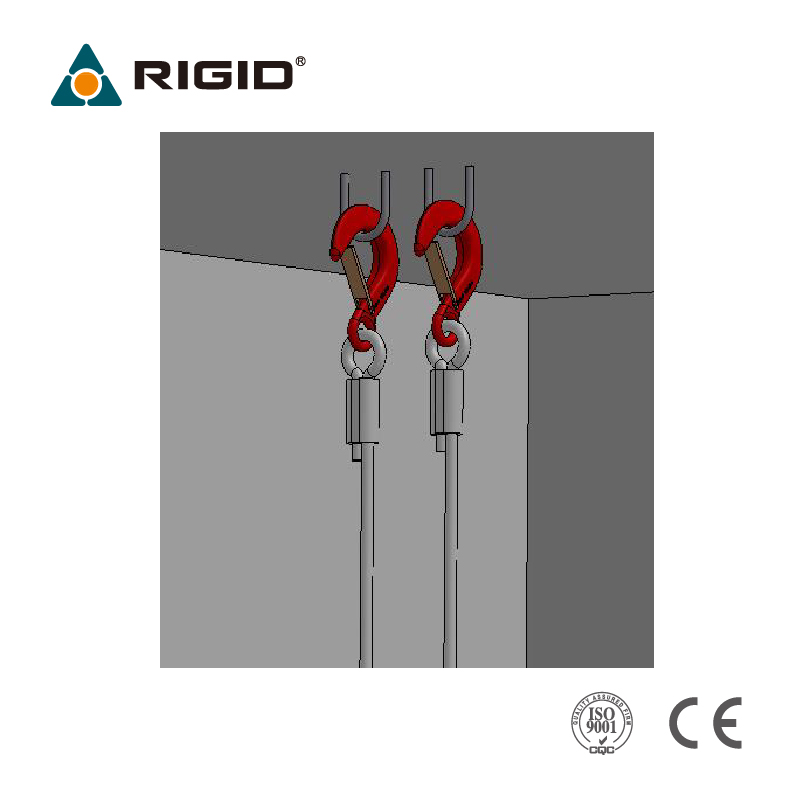

1. Heavy Lifting Hook

1:1process conﬁguration;

The end of the steel wire rope should be connected by aluminum riveting or standard wedge sleeve;

Telescopic rods should be conﬁgured for easy suspension outside the shaft.

2. Climber Installation Bracket

The bracket is fastened to the middle of the car ceiling beam and can be equipped with climbers and safety locks

3. Climber

LTD100-10P9 with integrated control system Climber , at a speed of 9m/min; Connecting through the climber adapter platform;

Applying Ф 10.2 High-strength steel wire rope.

4. Overspeed Fall Arrester

OSL510 Overspeed safety lock with a rated load of 1000kg;

The platform will automatically lock when it descends more than 30m/min; Ф 10.2 High strength steel wire rope should be used.

5. Steel Wire Rope

For Ф 10.2 steel wire rope used for climbers, the length should be conﬁgured not less than the shaft height.

6. Elevator Car Top Platform

Aluminum protective railings should be installed around the platform.

7. Anti-derailment Protection System

8. Safety Tong Assembly

The second descent protection of the platform is achieved by manually triggering the Safety tong trigger or automatically triggering the speed limiter.

9. Heavy Hammer

Maintaining the safety lock wire rope vertically suspended.

Complete Accessories & Hardware

Everything you need to deploy RIGID hoists on site — from wire ropes to control panels.

Hoist Mounting Beam

Steel beam with adjustable brackets for car ceiling or false car frame. Custom widths available.

Wire Rope & Winding Reel

Galvanized steel wire rope, Ø 10.2 or 14.0 mm. Pre-wound reels for shaft height.

Diverter Pulley

For 2:1 suspension rope routing. Steel construction, groove-matched to wire rope diameter.

Telescopic Suspension Rod

Extendable rods for hoist beam positioning outside the shaft. Adjustable length.

Car Top Protective Railings

Aluminum guardrails. Clamp-mounted, tool-free installation. Conforms to safety height standards.

Control Box & Cable

Weatherproof control box with emergency stop, descent speed control, and power indicator.

Wireless Remote Control

For MH MiniHoist rail lifting. Safe operation from up to 50 m distance.

Tool Belt & Mounting Kit

Bolt sets, shackles, and slings for attaching hoist to beam. All grade 8.8 or higher.

Accessories
No.	Description EN	Specification	Article code	Drawing Picture	Qt.	Unit
1	Traction Hoist LTD100-10P18 Rated Load 1000Kg 400V/50Hz/3phase	CE approval includes Pendant remote contol			1	PCS
2	Special Mounting bracket				1	PCS
3	Safety Lock OSL512	Rated Load 1600Kg			1	PCS
4	Wire rope 10.2mm - price per 1 meter 5*K26WS+PP 10.2mm	1 metrs			1	PCS
5	Wire rope 11.5mm - price per 1 meter 5*19S+FC 11.5mm	1 metrs			1	PCS
6	Steel drum reel 100 (0-60m)				1	PCS
7	Steel drum reel 200 (60-160m)				1	PCS
8	Steel drum reel 300 (160-250m)				1	PCS
9	Steel drum reel 400 (250-350m)				1	PCS
10	Steel drum reel 500 (350-400m)				1	PCS
11	Positive pressure hook assembly				1	set
12	Wire Rope Hammer				1	PCS
13	2T Pulley without steel cover - wire rope 10mm	*The price includes and safety rope Shock absorber			1	PCS
14	Pulley Mast (Collapsible rod for installation of pulley or hook (1-6M))				1	PCS
15	Pneumatic spring trigger	Includes Brake line			1	PCS
16	Dynamometer bracket				1	PCS
17	Guide device for pit				1	PCS
18	Guide spring				1	PCS
19	Chain	Length 3m, rated load 2T			1	PCS
20	Elevator Cabin Template Bracket				1	PCS
21	OCS-3T-WZ Dynamometer -OCS-3T-WZ				1	PCS
22	Brake line bracket				1	PCS
23	Guide Inspection Tool				1	PCS
24	Transportation box	1.3х0.5х0.6 M			1	PCS
25	5-core Industrial Plug(HTCN)	HTN7151 5*16A			1	PCS
26	Universal beam adapter				1	PCS
