Key takeaway: Choosing a suspended working platform is not about picking "the basket that holds the most" — it’s about selecting a safe, durable suspension work system that fits your building and your job.

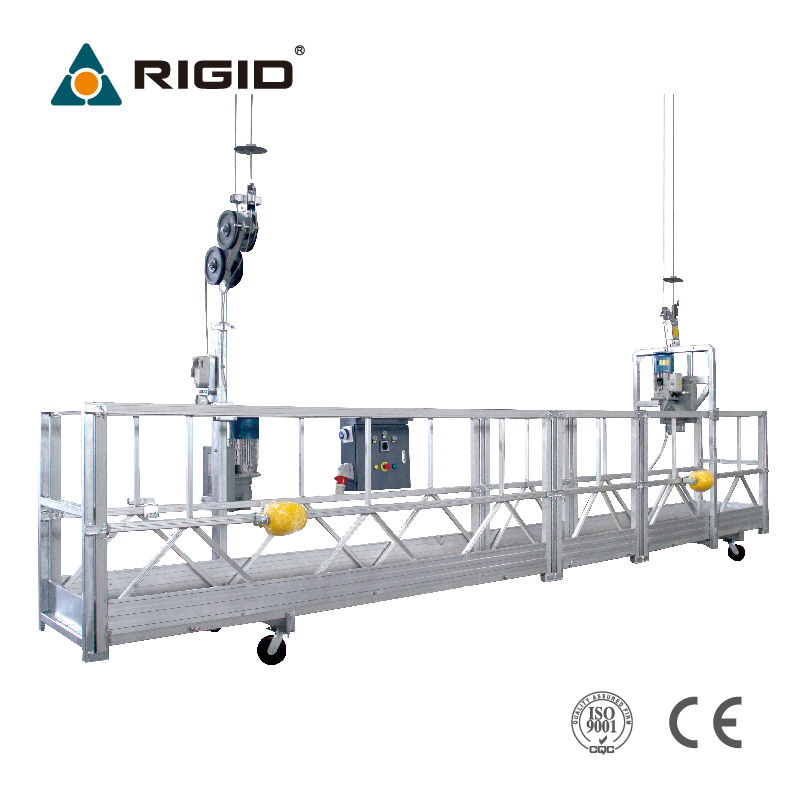

Facade construction, curtain wall installation, window cleaning, chimney and silo maintenance, bridge repair — for all these high-altitude jobs, scaffolding is slow and costly, and ladders are inefficient and risky. Electric suspended platforms (gondolas / cradles) are the standard solution: the platform hangs from a roof suspension structure on steel wire ropes and is driven up and down by electric hoists. Modular design adapts to almost any height.
But the market is crowded, prices range from a few hundred to tens of thousands of dollars, and safety configurations vary wildly. How do you choose without falling into traps? Work through the 8 points below and you’ll rarely go wrong.
The first thing is to calculate how many people, tools, and materials you carry in one lift. Rated load = workers’ weight + tools + materials (plus a safety margin).

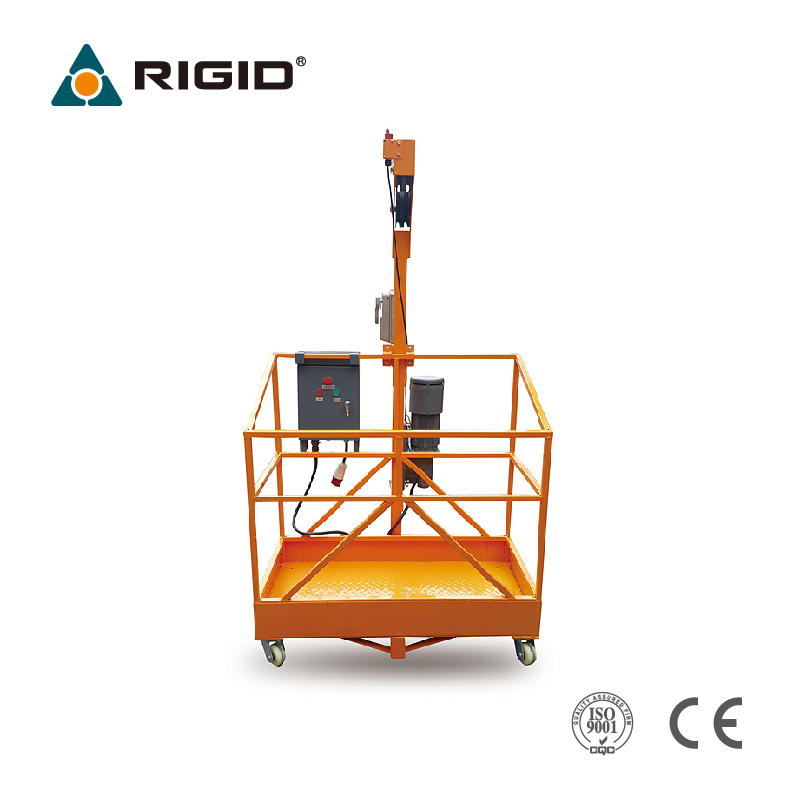

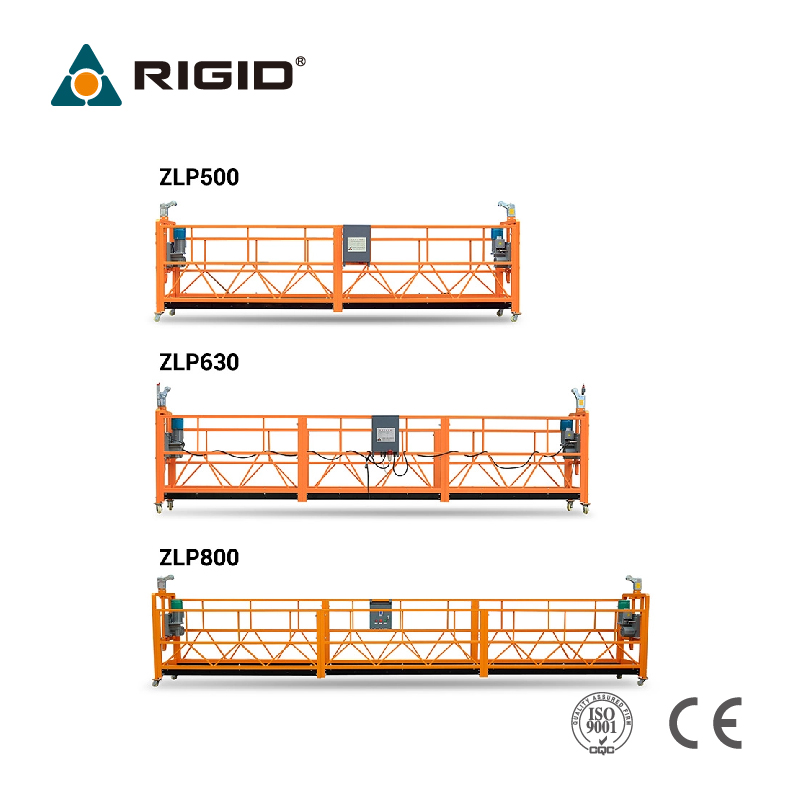

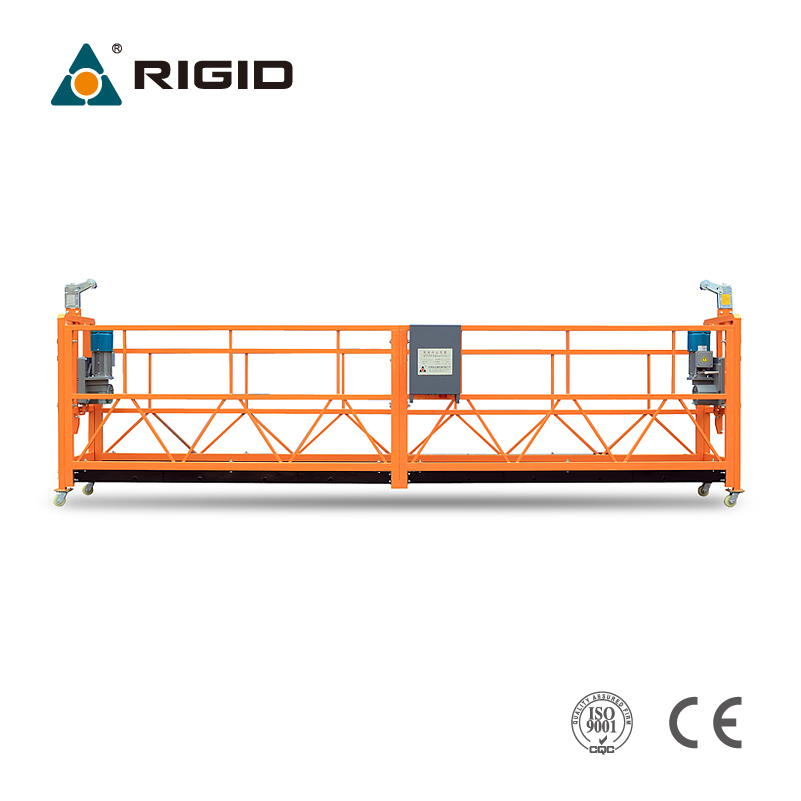

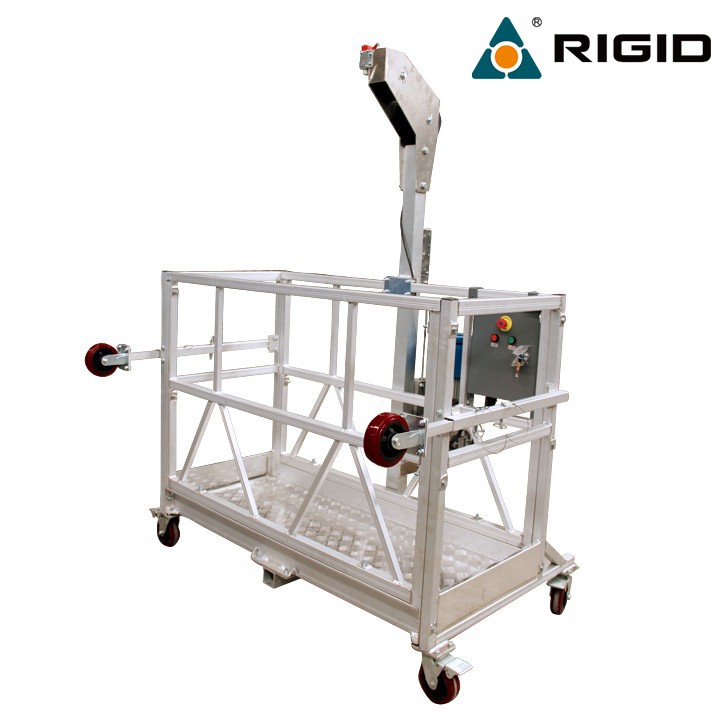

In the industry, suspended platforms are classified by rated load — the model number IS the rated load: ZLP250 (250 kg), ZLP500 (500 kg), ZLP630 (630 kg), ZLP800 (800 kg), ZLP1000 (1,000 kg).
Window cleaning and light repair: ZLP500/630 is enough
Curtain wall installation and heavy work: start from ZLP800
High-volume material handling: ZLP1000
Calculate the load first, then choose the model — don’t look at price first. Too small a load and you can’t carry your material; too large and the platform is heavy and overpriced.
A suspended platform is man-riding equipment; safety configuration is not where you save money. A qualified platform must include:
1. Service brake built into the hoist — normal braking during lifting/lowering
2. Two fall arrest devices (safety locks) — acting on independent safety wire ropes, auto-locking on tilt or fall (minimum 2)
3. Two upper limit switches — automatic stop at top to prevent overtravel
4. Emergency stop — one-press power cutoff
5. Controlled descent on power failure — the brake can be manually released with an integrated centrifugal force brake for a controlled slow descent, not a free fall
Check each item — missing any one is unacceptable. "Controlled descent on power failure" matters most: on-site temporary power trips are common. Without this feature, workers hang mid-air waiting for rescue.

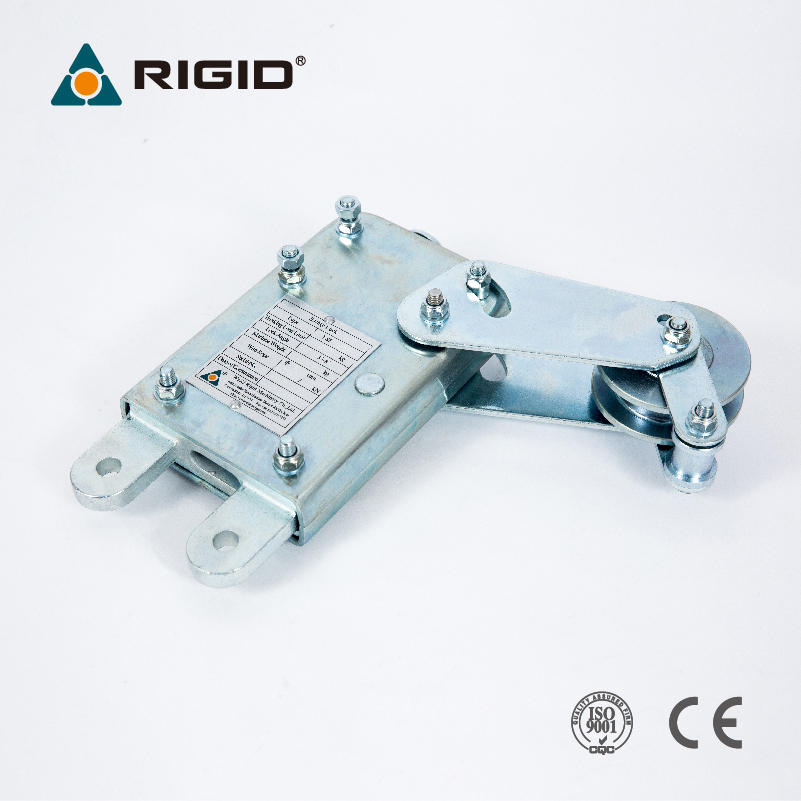

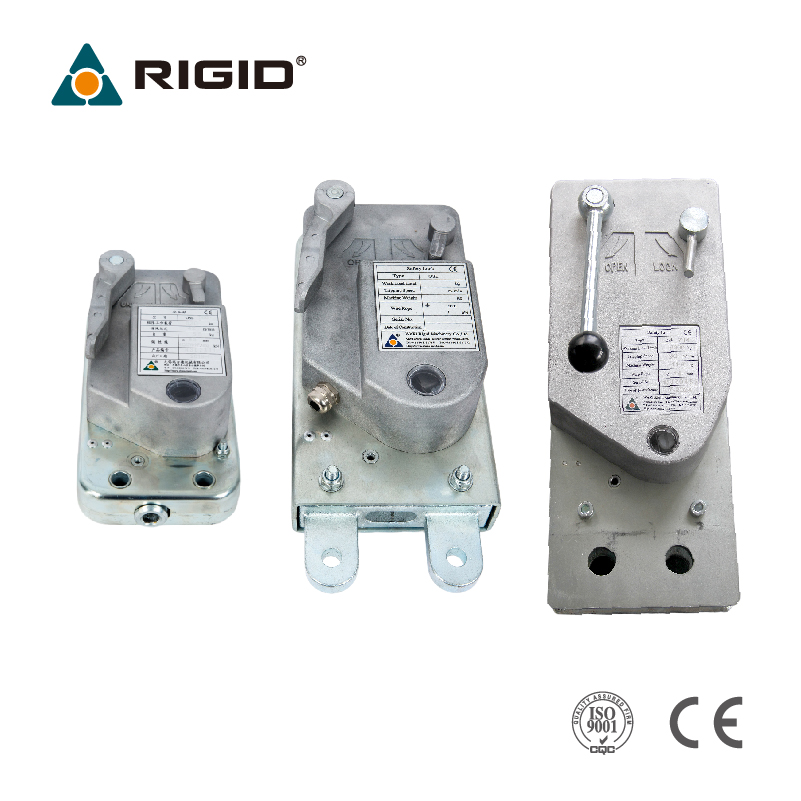

The safety lock is the "life-saving part" of the platform — evaluate it on its own:
Type: prefer anti-tilt safety locks (e.g., LSF series), which lock the safety wire rope automatically on platform tilting or overspeed
Quantity: at least 2 as standard, acting on two safety wire ropes
Certification: CE / TÜV / SGS certified — non-negotiable

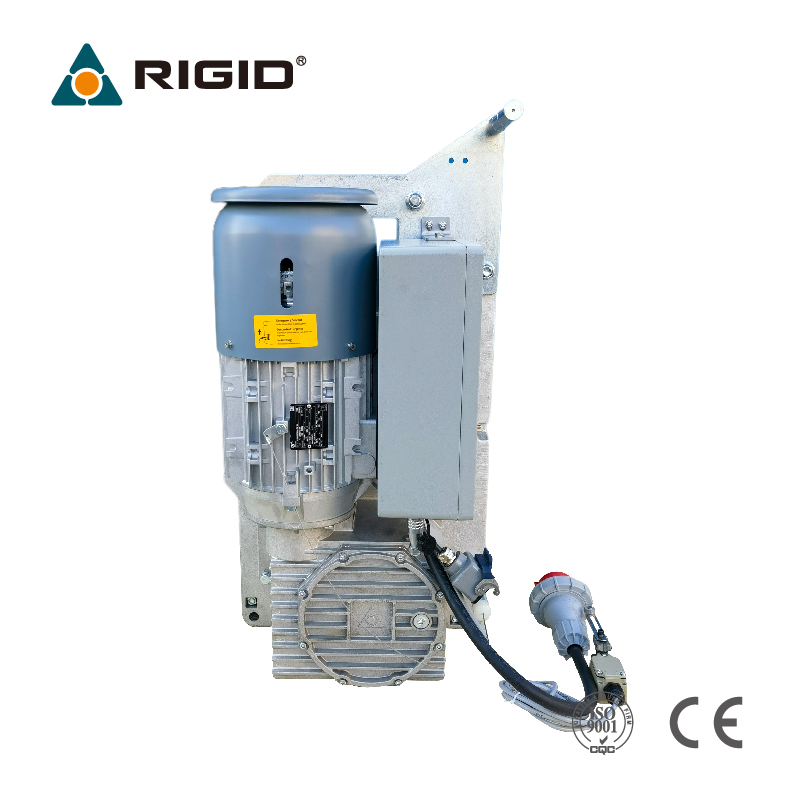

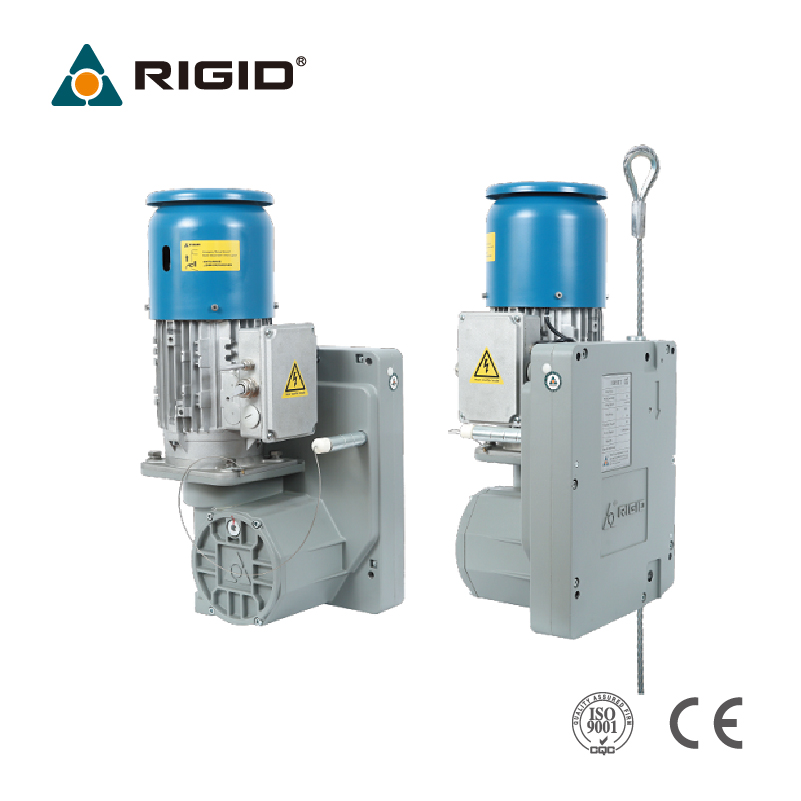

The platform is driven by electric hoists (typically 2, one on each end):
Wire guiding system: mature hoists use the "α" wire guiding system — less wear, longer service life
Protection rating: outdoor work in wind and rain — at least IP55
Power-failure mechanism: can the electro-mechanical brake be manually released, with an integrated centrifugal force brake for safe controlled lowering?
Rope length / height: models with unlimited wire rope length mean unlimited working height — critical for high-rise projects
Three-phase power is easy to find in China, but many overseas sites only have single-phase 220V. Confirm the power supply when selecting:
Three-phase 400V 50/60Hz: standard, lifting speed approx. 9 m/min
Single-phase 220V: available as an option (capacitor-start or converter), designed for sites without three-phase power
High-speed version (e.g., 18 m/min): for high-rise projects on tight schedules
Faster is not always better — excessive speed on man-riding platforms is dangerous; 9 m/min is the industry-comfort mainstream. 18 m/min suits material-lifting scenarios.

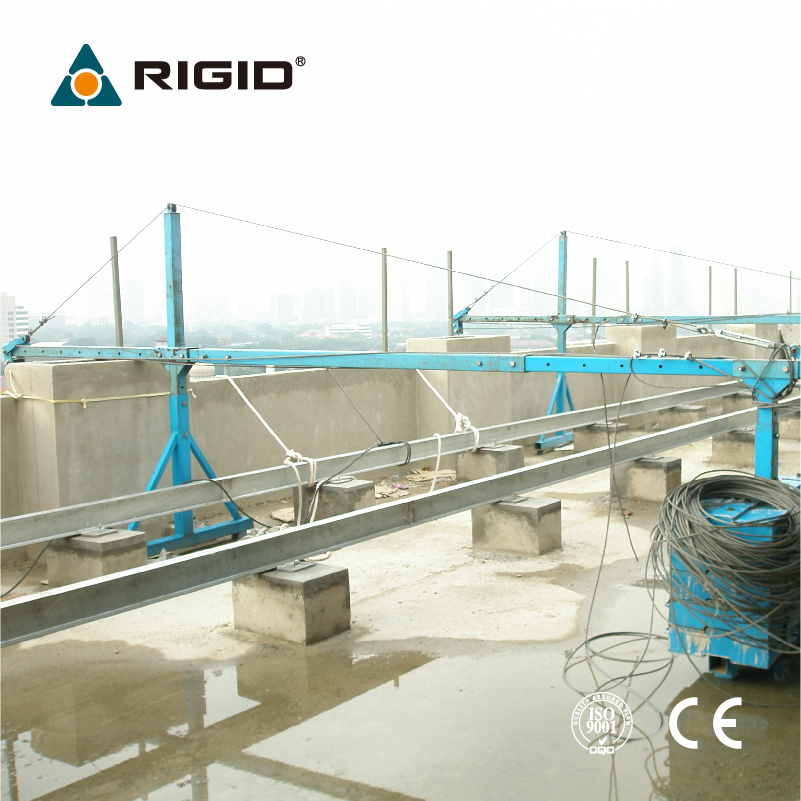

The platform hangs from the roof — but roofs are all different. Choose the wrong suspension and the platform won’t even go up:
Roof suspension system: standard suspension beams for regular roofs
Suspension jib: adjustable overhang length, height, and width — fits parapets of different heights and complex roofs; the new rope-lock design doesn’t damage the rope; excess wire rope can be stored on the jib
Parapet clamps: clamp directly to parapets without embedded anchors or counterweights
Also note the three stirrup types:
End stirrup: the most economical and lightweight
"Frame" stirrup: platform ends and building corners stay clear
"L" stirrup: completely clear working surface — best for working close to the facade
Send roof photos to the supplier before buying and let engineers confirm the suspension plan — the most trouble-free approach.
Assembly: standard-segment modular design for quick on-site assembly; length combined per project
Guardrails and toe boards: confirm compliance with safety standards (e.g., EN1808 requirements)
Material: aluminum for lightweight handling; steel for heavier duty
CE certification: insist on third-party bodies — e.g., German Rhine TÜV independent testing and factory inspection, covering hoists/winches and safety locks/fall arresters
EN1808: European standard for temporary suspended platforms; overload sensors designed to EN1808
GB/T 19155-2017: China’s national standard for construction suspended platforms — whether the supplier participated in drafting it is a hard indicator of industry standing

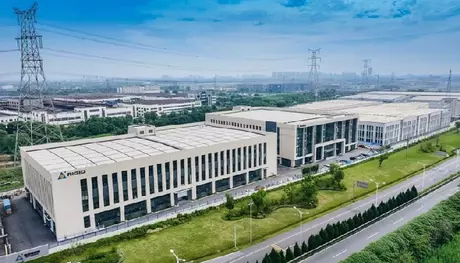

6. Production scale: smart production lines, factory area (e.g., a 25,000 m² intelligent manufacturing base)
7. Export track record: service history in demanding Western markets (USA, Germany, Spain, Brazil, etc.) — overseas reputation is the most honest reference
8. Customization capability: non-standard platforms, special suspension, branding
9. After-sales and spares: availability of wearing parts — standardized components mean easy maintenance
❌ Price-only comparison: equipment 30% cheaper usually means savings were made on the safety locks and brakes
❌ Ignoring the power supply: buy a three-phase machine and find single-phase power on site — dead on arrival
❌ Not confirming the roof: a mismatched suspension means the platform can’t be installed on site
❌ Overlooking the power-failure mechanism: being stranded mid-air is a leading accident scenario
❌ Skipping certifications: a safety lock without CE/TÜV is unacceptable at any price
In one sentence: Choosing a suspended platform = calculate the load and pick the model (ZLP250–1000) + verify the 5 safety items + examine the safety lock + check the hoist + confirm the power supply + match the suspension + verify certifications + evaluate the supplier. Check all eight and your purchasing decision won’t go wrong.
Need help? RIGID (Wuxi Rigid Machinery Co., Ltd.) has been deeply engaged in wire-rope lifting equipment for years, with a 25,000 m² intelligent manufacturing base. Key ZLP series components (hoists and safety locks) are CE certified by German Rhine TÜV, and the company participated in drafting GB/T 19155-2017 — the national standard for construction suspended platforms — exporting to 60+ countries and regions. Send us your project details (building type, job content, roof photos) and our engineers will provide selection and suspension recommendations for free.
